VG95234A-325PN
CA3102E32-5PB-F80

( TR3102E32-5PB-F80 )

Connectors > VG95234 Bayonet Series
Home Page Products VG95234A-325PN,CA3102E32-5PB-F80
VG95234A-325PN<br>CA3102E32-5PB-F80
Connectors > VG95234 Bayonet Series

VG95234A-325PN
CA3102E32-5PB-F80

TR3102E32-5PB-F80

Receptacle for front panel mounting with square flange.

Product Features

Filter Name Value
Connector Type Receptacle
Connector Shell Style Box Mounting Receptacle
Connector Mounting Type Front Mount
Shell Stytle A
Number of Contacts 2
Contact Gender Pin
Shell Size 32
Shell Material Aluminium
Shell Plating Cadmium Olive Drab Over Electroless Nickel
RoHS N

Catalogs

VG95234A-325PN<br>CA3102E32-5PB-F80

VG95234 STYLE / TR95234 BAYONET CONNECTORS

Contact Info

Contact
arrangement

Contacts

Angular position of the contact inserts in degrees

Number

Size

Metric

AWG

32-5

2

500

0

N (0°)

Contact Layout (front face of pin illustrated)

Other Products

VG95234D-36A46PN
CA3106E36A46PB-F80

TR3106E36A46PB-F80

VG95234 Bayonet Series
Details

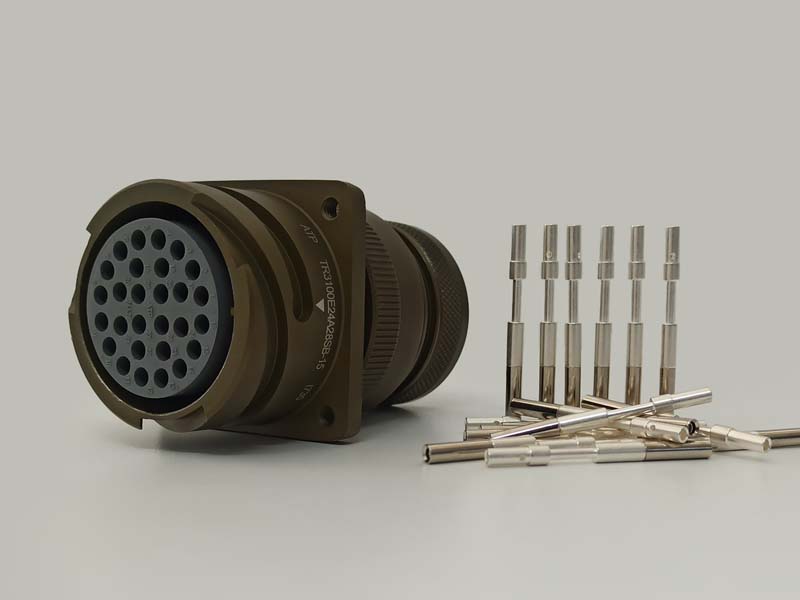

VG95234N1-24A28SN
