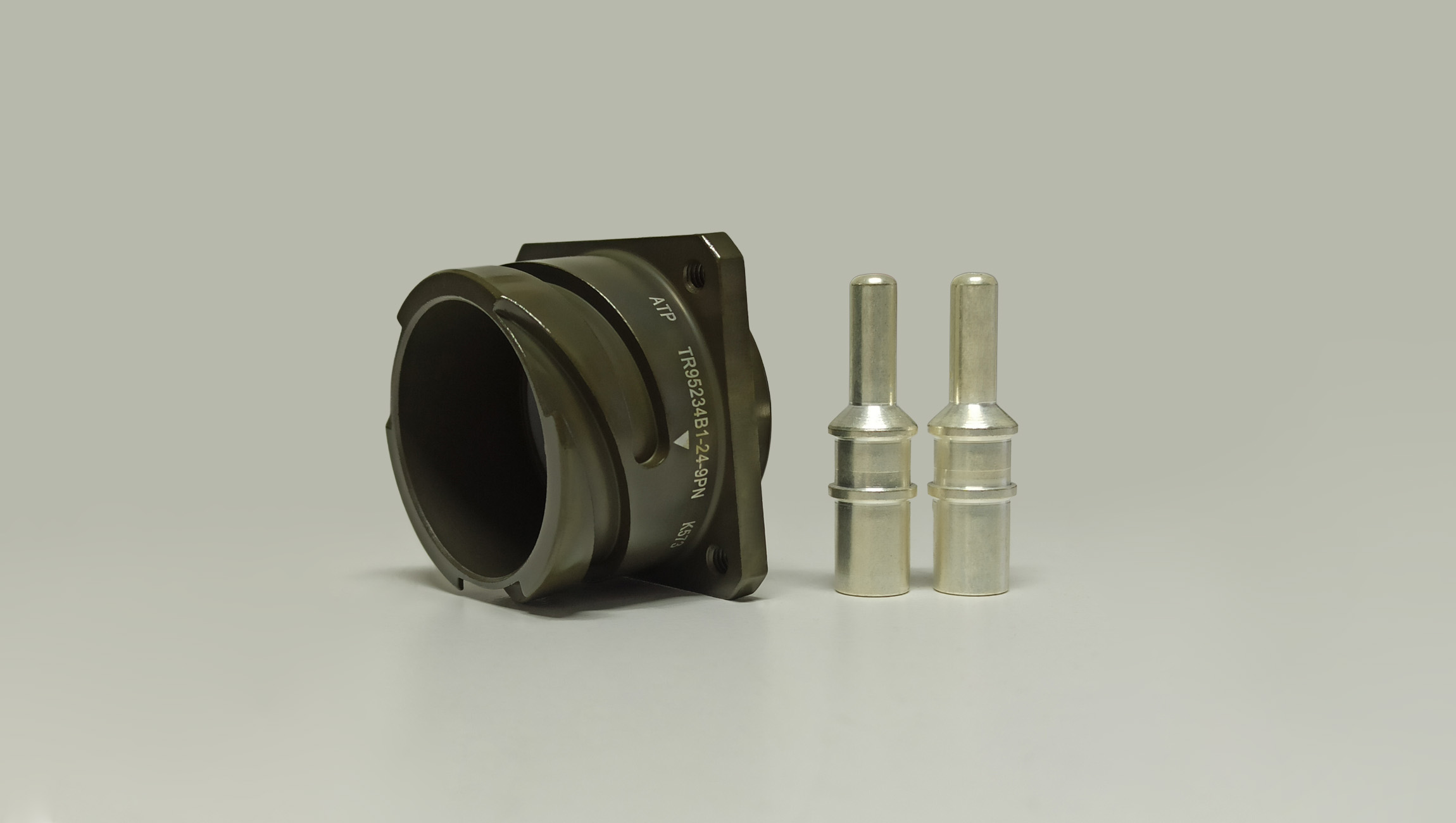

VG95234B1-24-9PN
CA3102E24-9PB-109
TR95234B1-24-9PN
Receptacle with square flange for rear panel mounting.
Style B1 with 4 threadedholes.
VG95234B1-24-9PN
Product Features
| Filter Name | Value |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Box Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Shell Stytle | B1, B2 |
| Number of Contacts | 2 |
| Contact Gender | Pin |
| Shell Size | 24 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Catalogs
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
24-9 |
2 |
160 |
4 |
N (0°) |
|

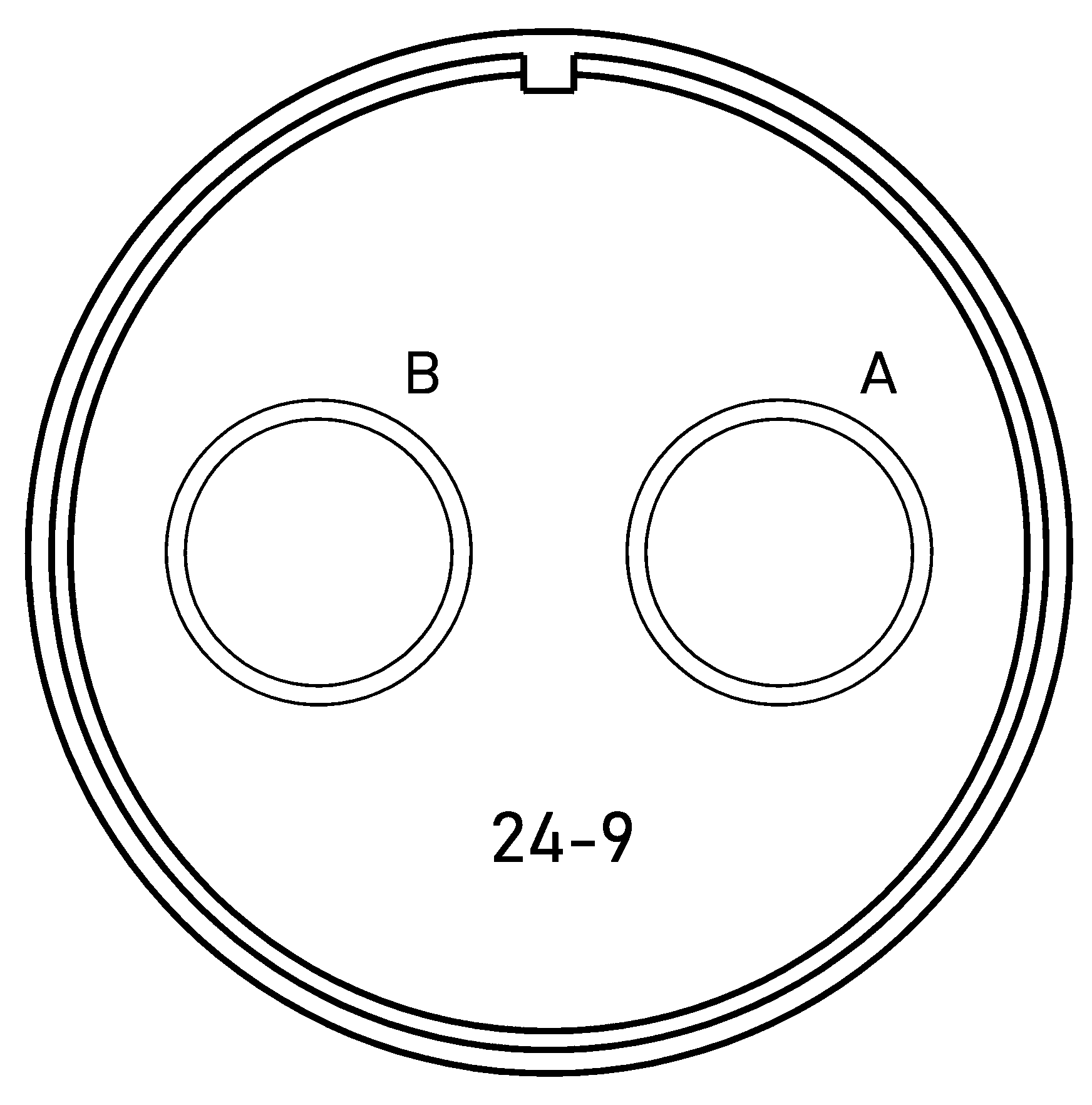

Contact Layout (front face of pin illustrated)
