VG95234M-24-7PN
CA3106E24-7PB-15
TR3106E24-7PB-15

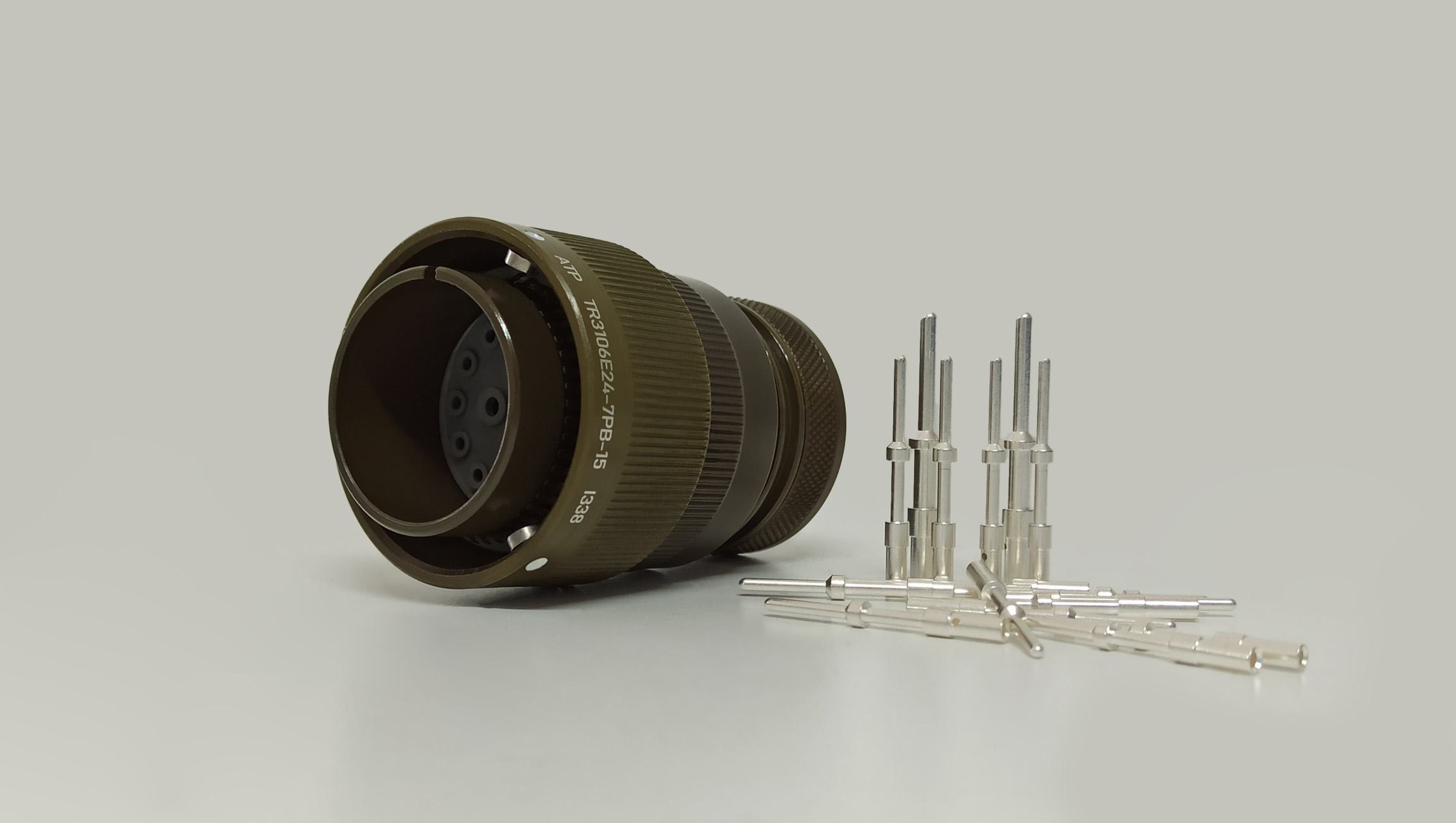

Straight, shielded plug with endbell for shielding braid, and heat shrink boots, grounding spring on the barrel.
VG95234M-24-7PN
Product Features
| Filter Name | Value |
|---|---|
| Connector Type | Plug |
| Connector Shell Style | Straight Plug |
| Connector Endbell Type | Shielded |
| Shell Stytle | M |
| Number of Contacts | 16 |
| Contact Gender | Pin |
| Shell Size | 24 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Catalogs
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
||
|
Number |
Size |
|||
|
Metric |
AWG |
|||
|
24-7 |
2 |
25 |
12 |
N (0°) |
|
14 |
15 |
16 |
||

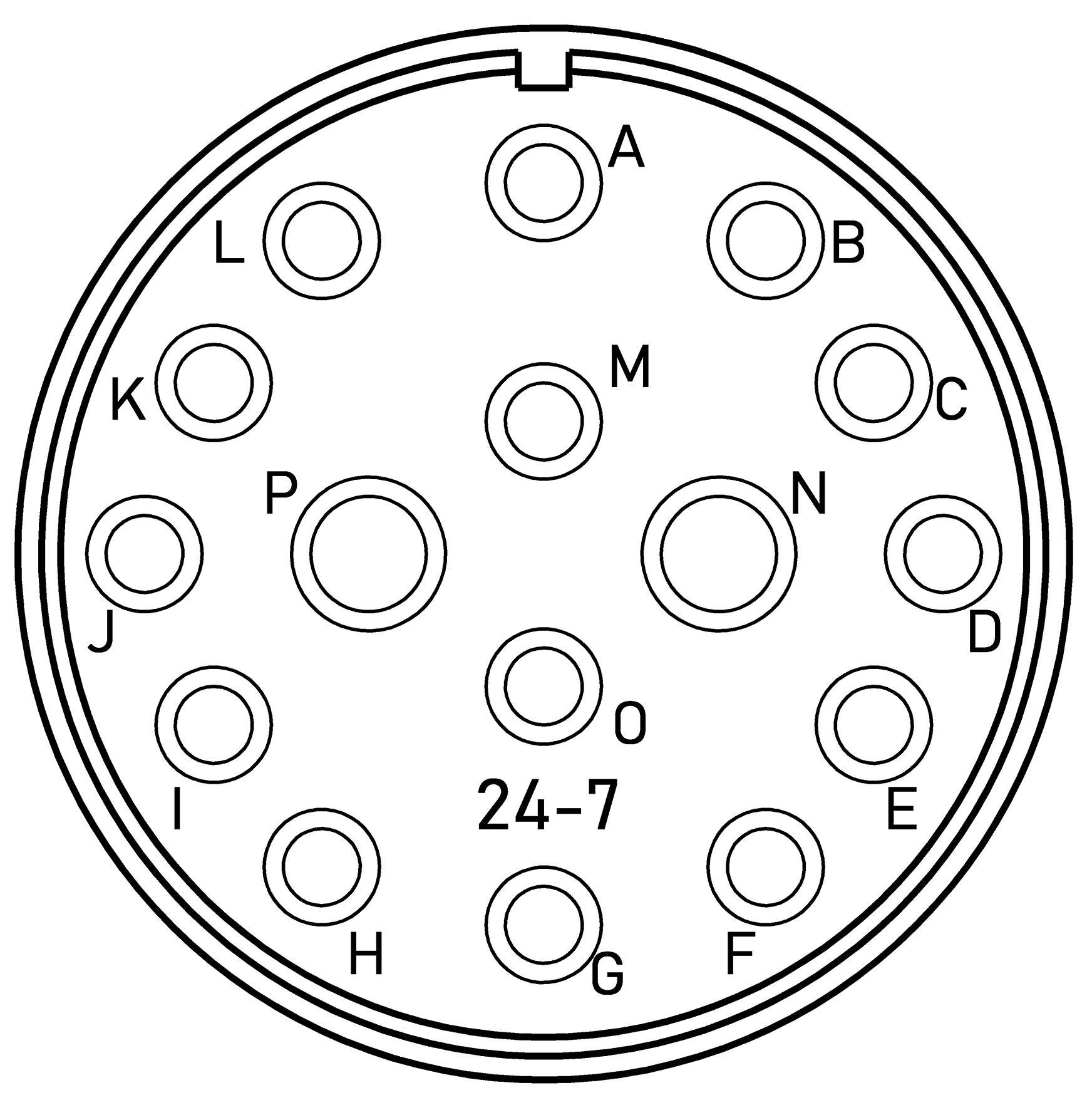

Contact Layout (front face of pin illustrated)
