VG95234N1-24A28SN
CA3100E24A28SB-15
TR3100E24A28SB-15

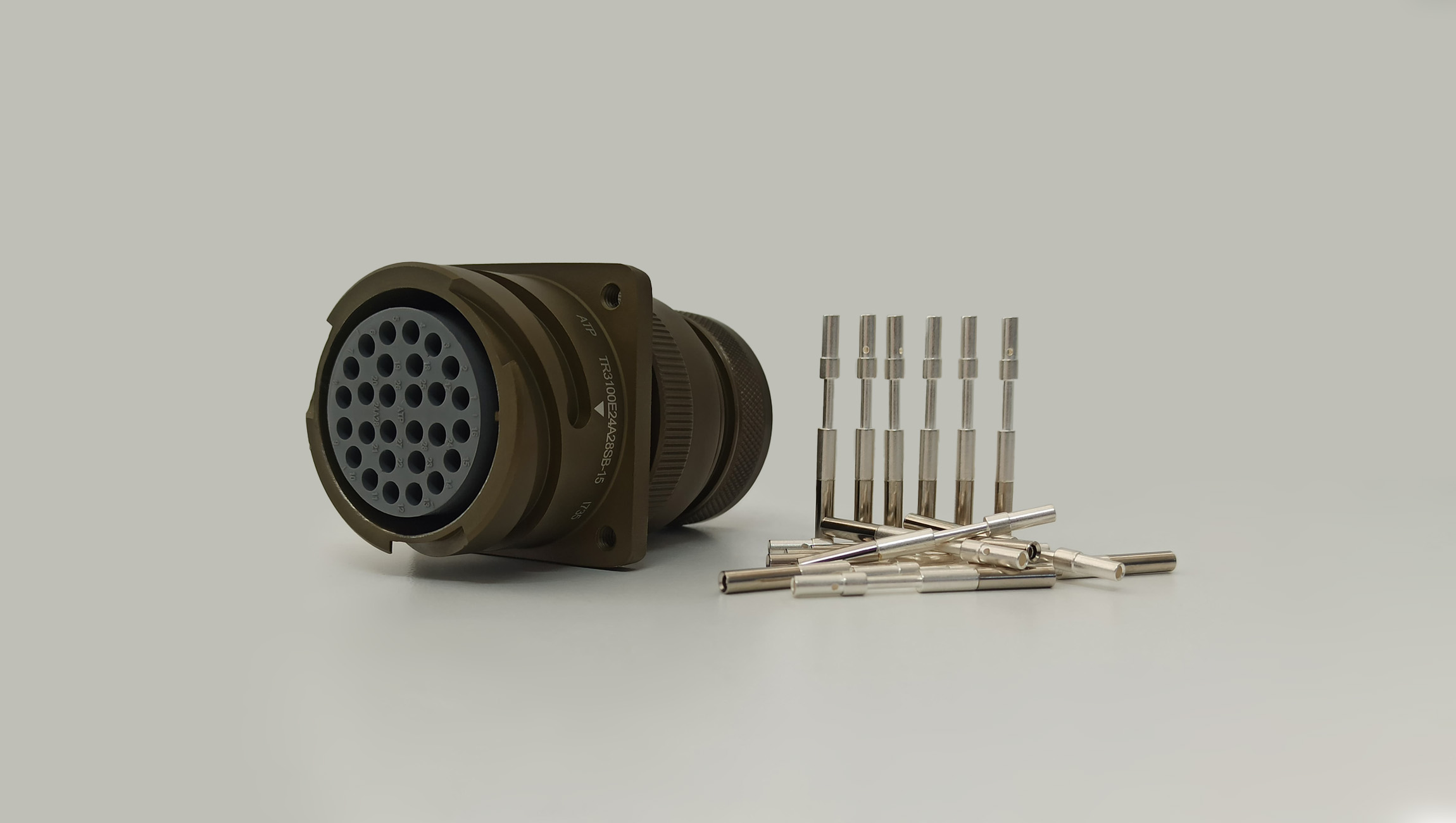

Shielded receptacle with endbell for shielding braid, and heat shrink boots. Style N1 with 4 threaded holes.
VG95234N1-24A28SN
Product Features
| Filter Name | Value |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Wall Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Connector Endbell Type | Shielded |
| Shell Stytle | N1, N2 |
| Number of Contacts | 28 |
| Contact Gender | Socket |
| Shell Size | 24 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Catalogs
Contact Info
| Contact arrangement |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
24A28 |
28 |
15 |
16 |
N (0°) |
|
Contact Layout (front face of pin illustrated)
