VG95234N2-32-3SN
CA3100E32-3SB-05-15
TR95234N2-32-3SN
Shielded receptacle with endbell for shielding braid, and heat shrink boots. Style N2 with 4 entry holes.
VG95234N2-32-3SN
Product Features
| Filter Name | Value |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Wall Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Connector Endbell Type | Shielded |
| Shell Stytle | N1, N2 |
| Number of Contacts | 9 |
| Contact Gender | Socket |
| Shell Size | 32 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Catalogs
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
||
|
Number |
Size |
|||
|
Metric |
AWG |
|||
|
32-3 |
4 |
15 |
16 |
N (0°) |
|
2 |
25 |
12 |
||
|
2 |
160 |
4 |
||
|
1 |
500 |
0 |
||
Contact Layout (front face of pin illustrated)
Other Products
VG95234B1-16-10PN
CA3102E16-10PB-109
TR3102E16-10PB-109
VG95234B1-28-22PN
CA3102E28-22PB-F80-04
TR3102E28-22PB-F80-04
VG95234N1-10SL-3PN
CA3100E10SL-3PB-15
TR3100E10SL-3PB-15

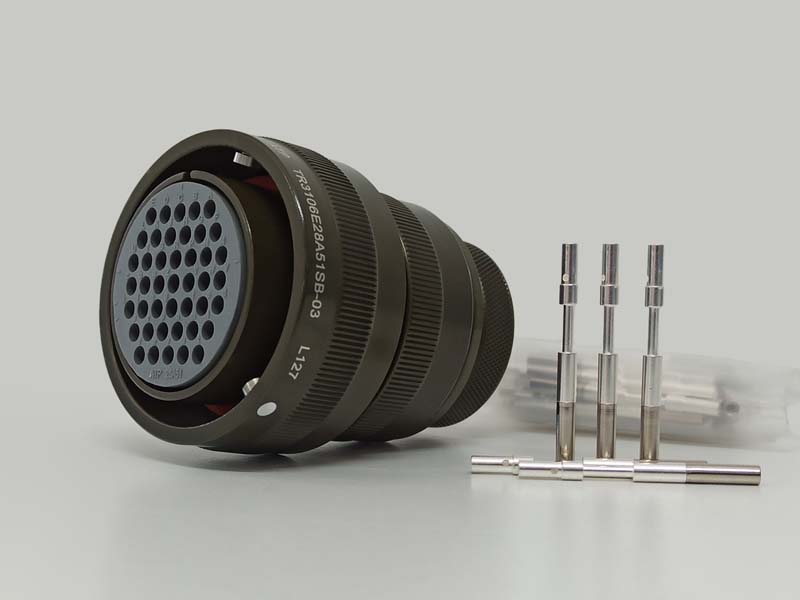

VG95234G-28A51S1N
