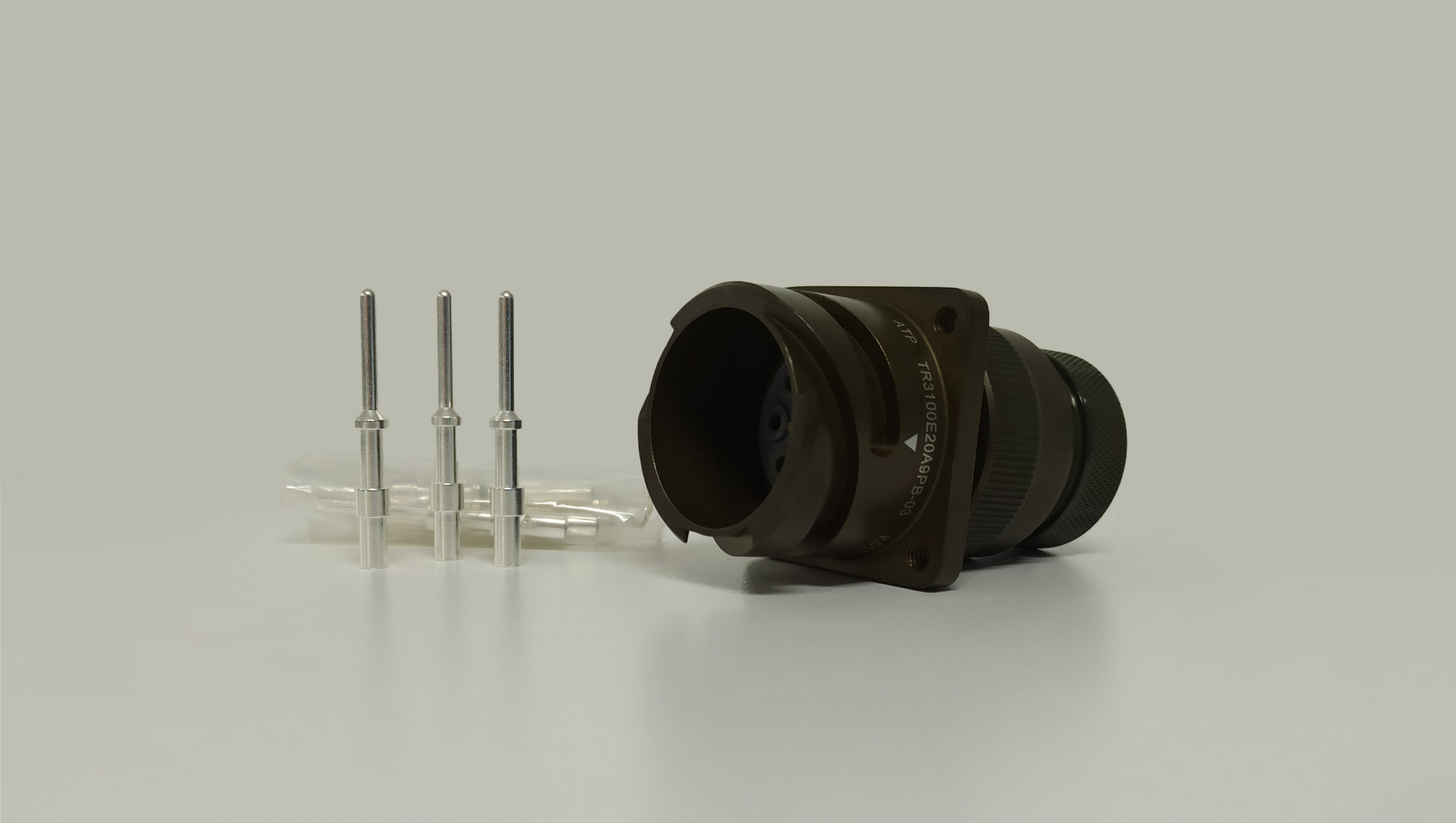

VG95234U1-20A9PN
CA3100E20A9PB-03
TR3100E20A9PB-03
Wall mounting receptacle with adapter for heat shrink boots. Style U1 with 4 threaded holes.
VG95234U1-20A9PN
Product Features
| Filter Name | Value |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Wall Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Connector Endbell Type | Heat Shrink Boot |
| Shell Stytle | U1, U2 |
| Number of Contacts | 9 |
| Contact Gender | Pin |
| Shell Size | 20 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Catalogs
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
20A9 |
9 |
25 |
12 |
N (0°) |
|
Contact Layout (front face of pin illustrated)
