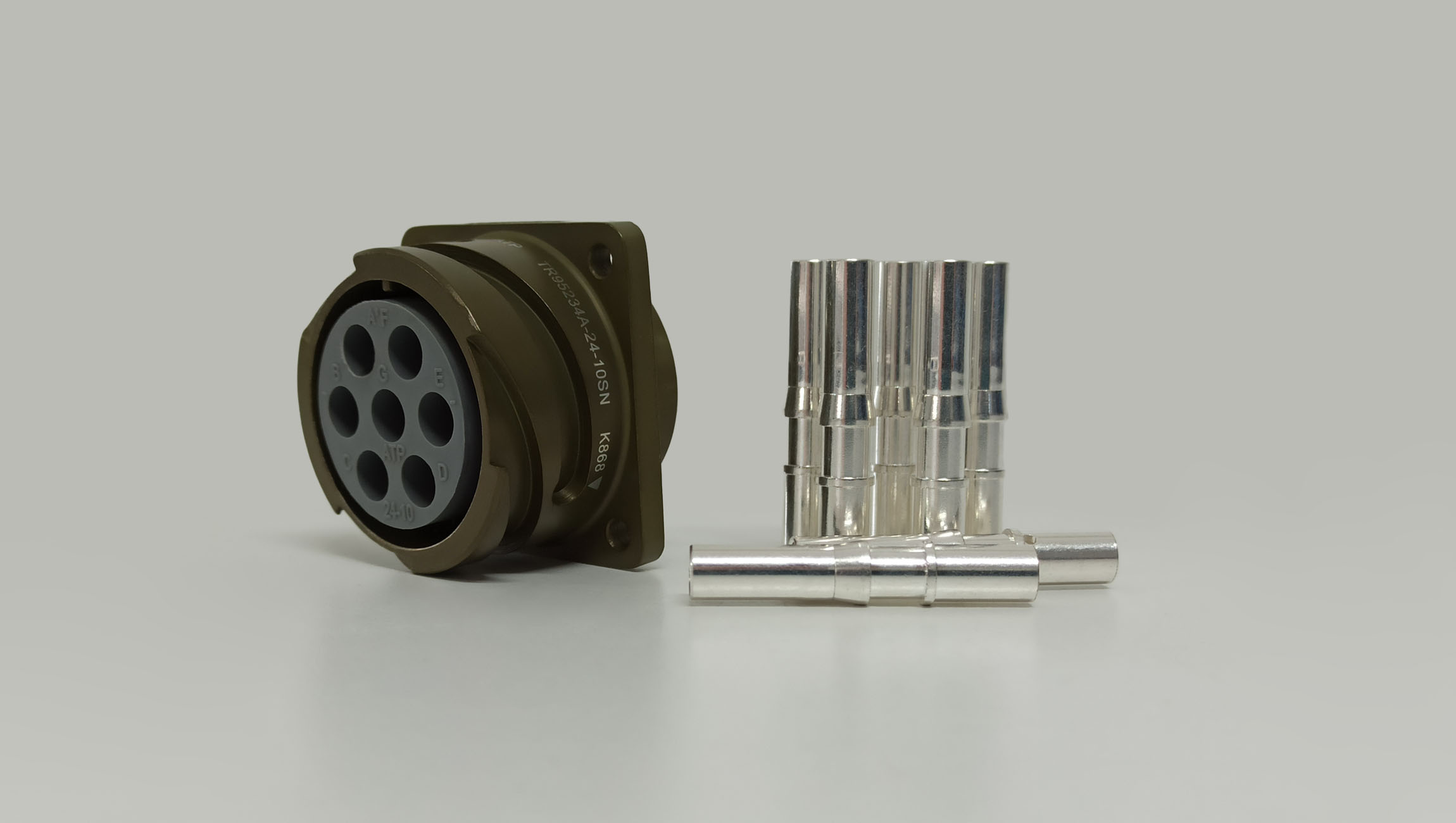

VG95234A-24-10SN
CA3102E24-10SB-F80
TR95234A-24-10SN
Receptacle for front panel mounting with square flange.
VG95234A-24-10SN
Product Features
| Filter Name | Value |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Box Mounting Receptacle |
| Connector Mounting Type | Front Mount |
| Shell Stytle | A |
| Number of Contacts | 7 |
| Contact Gender | Socket |
| Shell Size | 24 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Catalogs
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
24-10 |
7 |
100 |
8 |
N (0°) |
|
Contact Layout (front face of pin illustrated)
