VG95234M-20-2PN
CA3106E20-2PB-15
TR3106E20-2PB-15

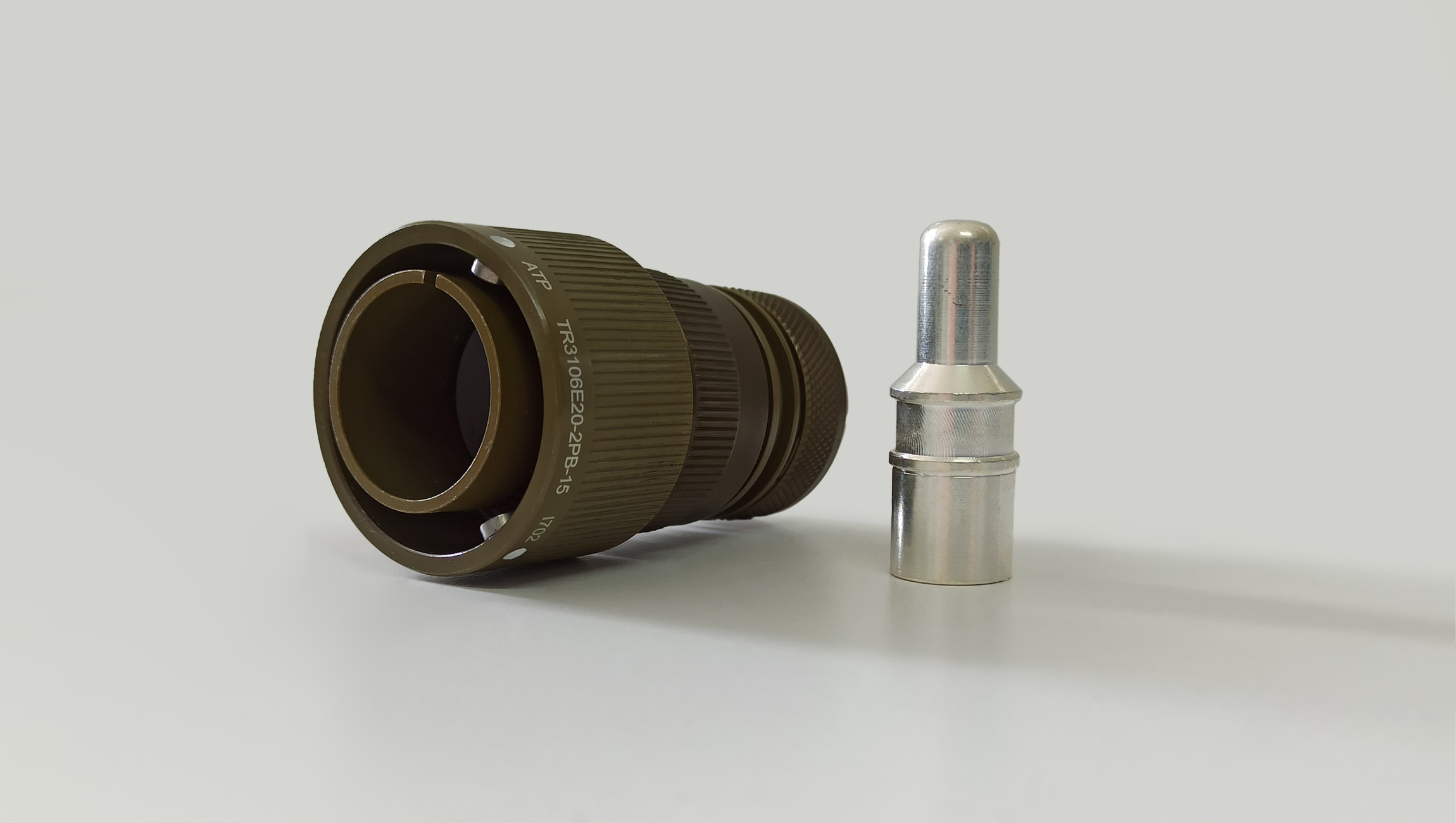

Straight, shielded plug with endbell for shielding braid, and heat shrink boots, grounding spring on the barrel.
VG95234M-20-2PN
Product Features
| Filter Name | Value |
|---|---|
| Connector Type | Plug |
| Connector Shell Style | Straight Plug |
| Connector Endbell Type | Shielded |
| Shell Stytle | M |
| Number of Contacts | 1 |
| Contact Gender | Pin |
| Shell Size | 20 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Catalogs
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
20-2 |
1 |
500 |
0 |
N (0°) |
|

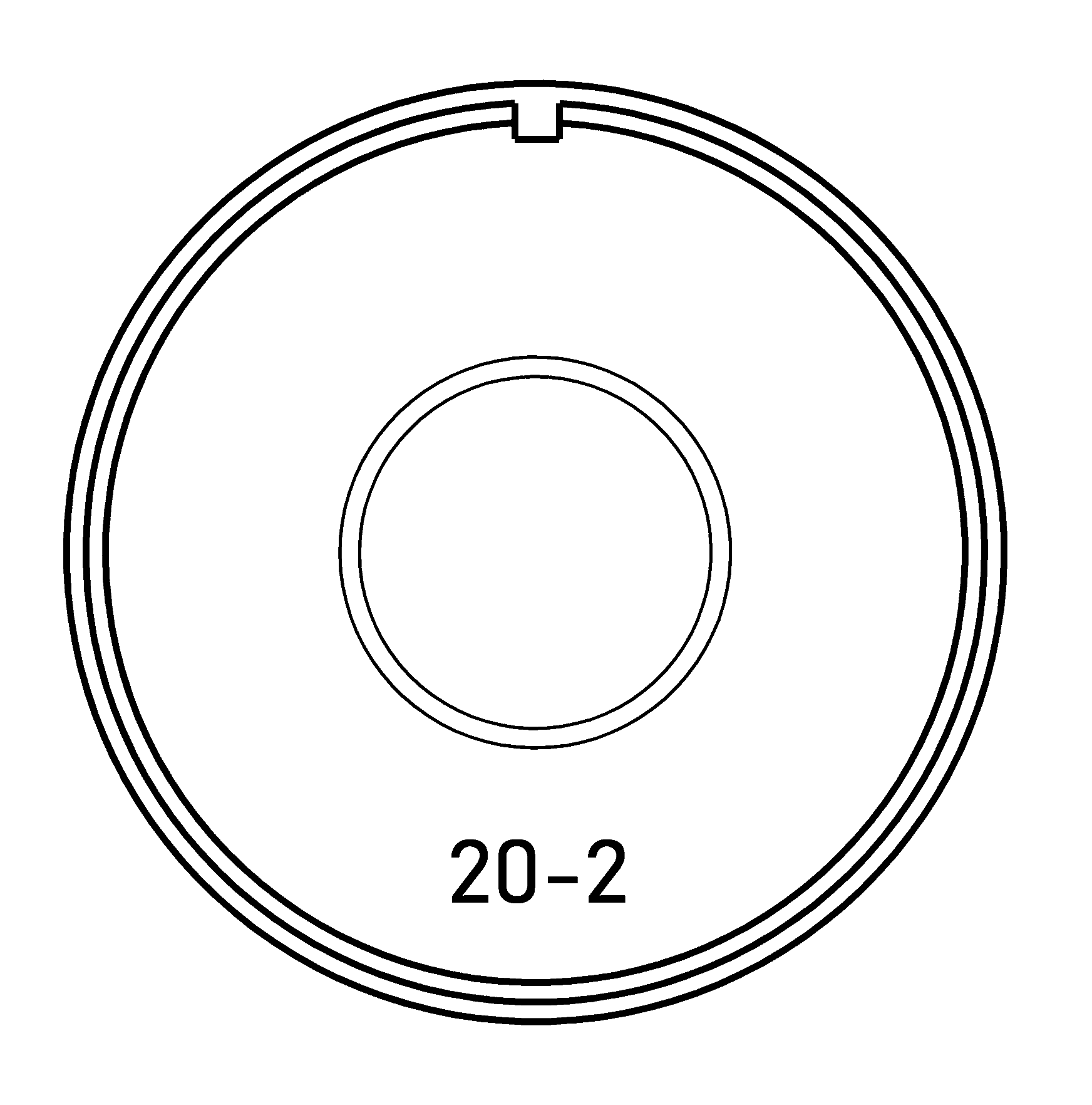

Contact Layout (front face of pin illustrated)
