VG95234N1-36-5PX
CA3100E36-5PXB-15
TR3100E36-5PXB-15

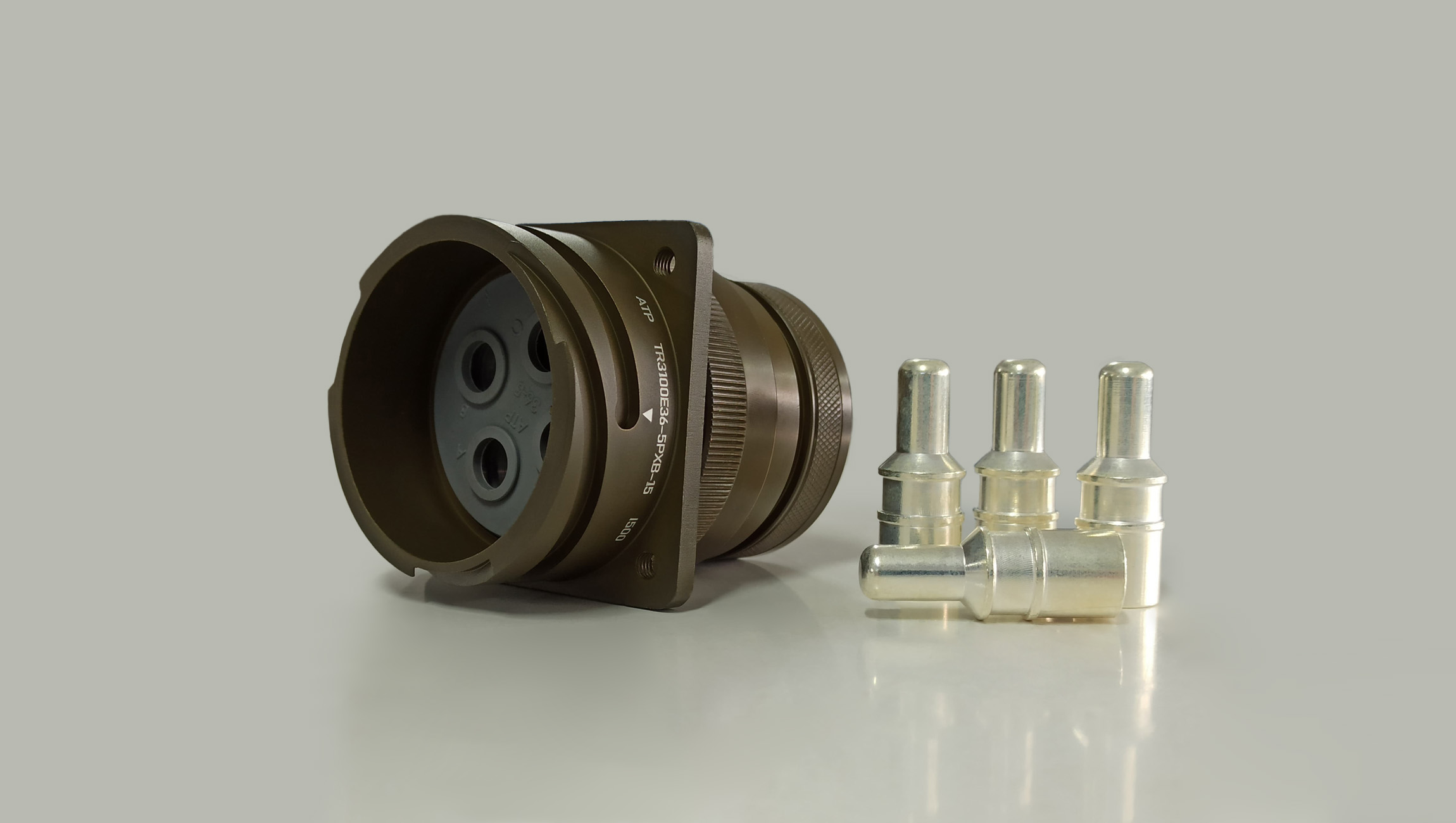

Shielded receptacle with endbell for shielding braid, and heat shrink boots. Style N1 with 4 threaded holes.
VG95234N1-36-5PX
Product Features
| Filter Name | Value |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Wall Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Connector Endbell Type | Shielded |
| Shell Stytle | N1, N2 |
| Number of Contacts | 4 |
| Contact Gender | Pin |
| Shell Size | 36 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Catalogs
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
36-5 |
4 |
500 |
0 |
X (120°) |
|
Contact Layout (front face of pin illustrated)
