CIR03R24-10P-F80-98
TR95234B2-24-10PN-SS

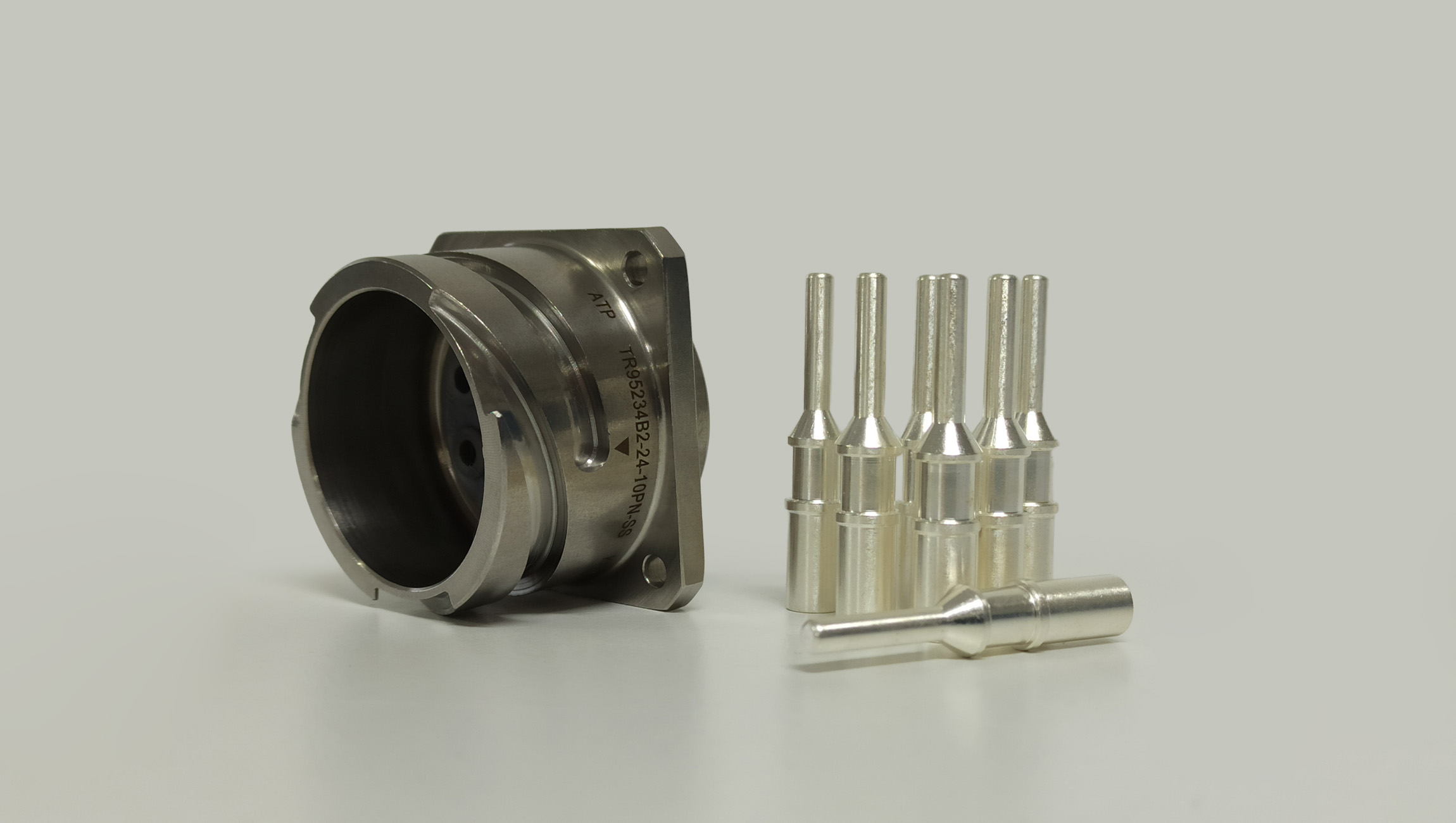

Receptacle with square flange for rear panel mounting. Style B2 with 4 entry holes.
Ürün Özellikleri
| Filtre Adı | Değer |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Box Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Shell Stytle | B1, B2 |
| Number of Contacts | 7 |
| Contact Gender | Pin |
| Shell Size | 24 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated |
| RoHS | Y |
Kataloglar
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
24-10 |
7 |
100 |
8 |
N (0°) |
|

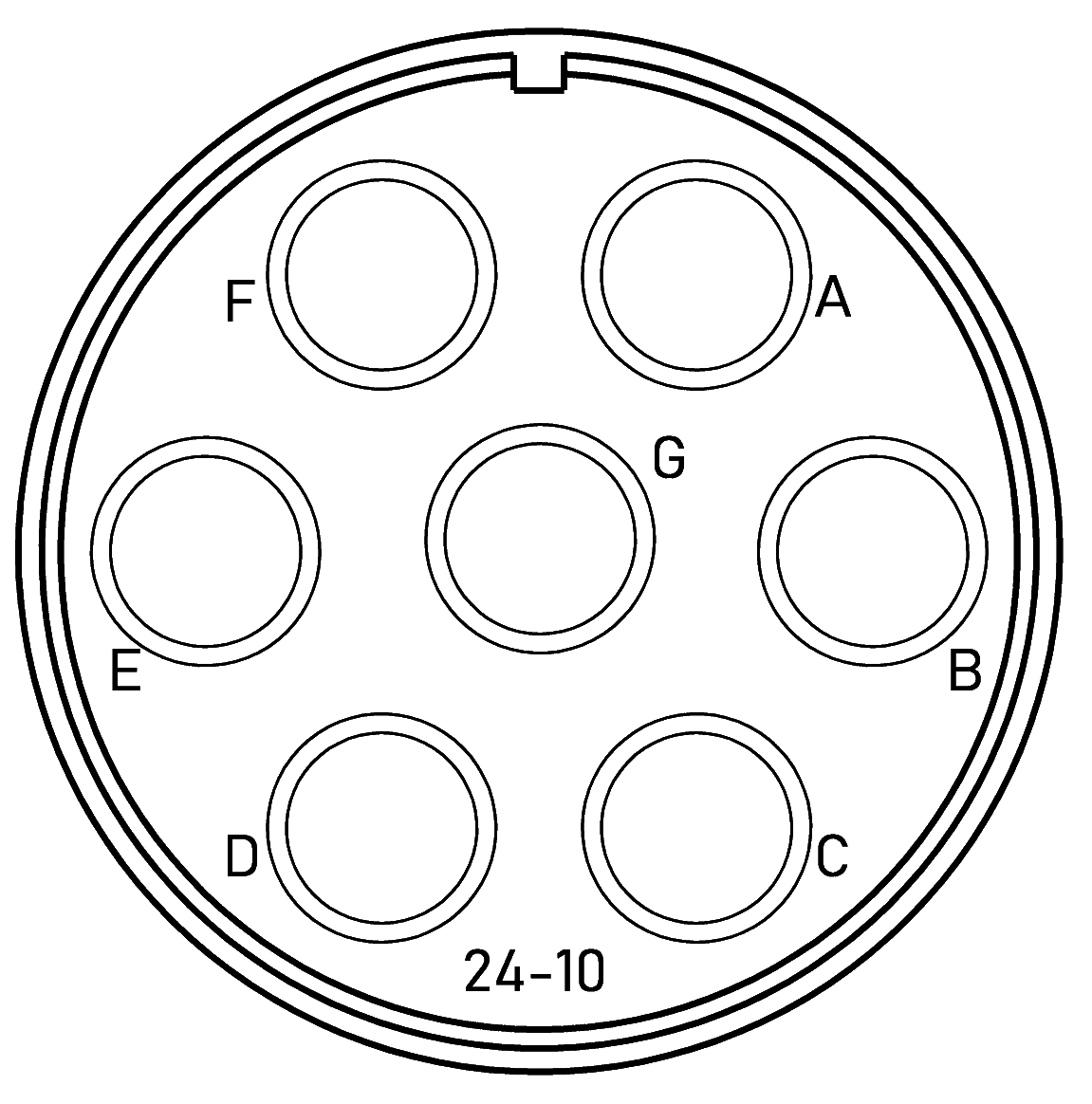

Contact Layout (front face of pin illustrated)
