VG95234A-18-10PN
CA3102E18-10PB-F80
TR95234A-18-10PN

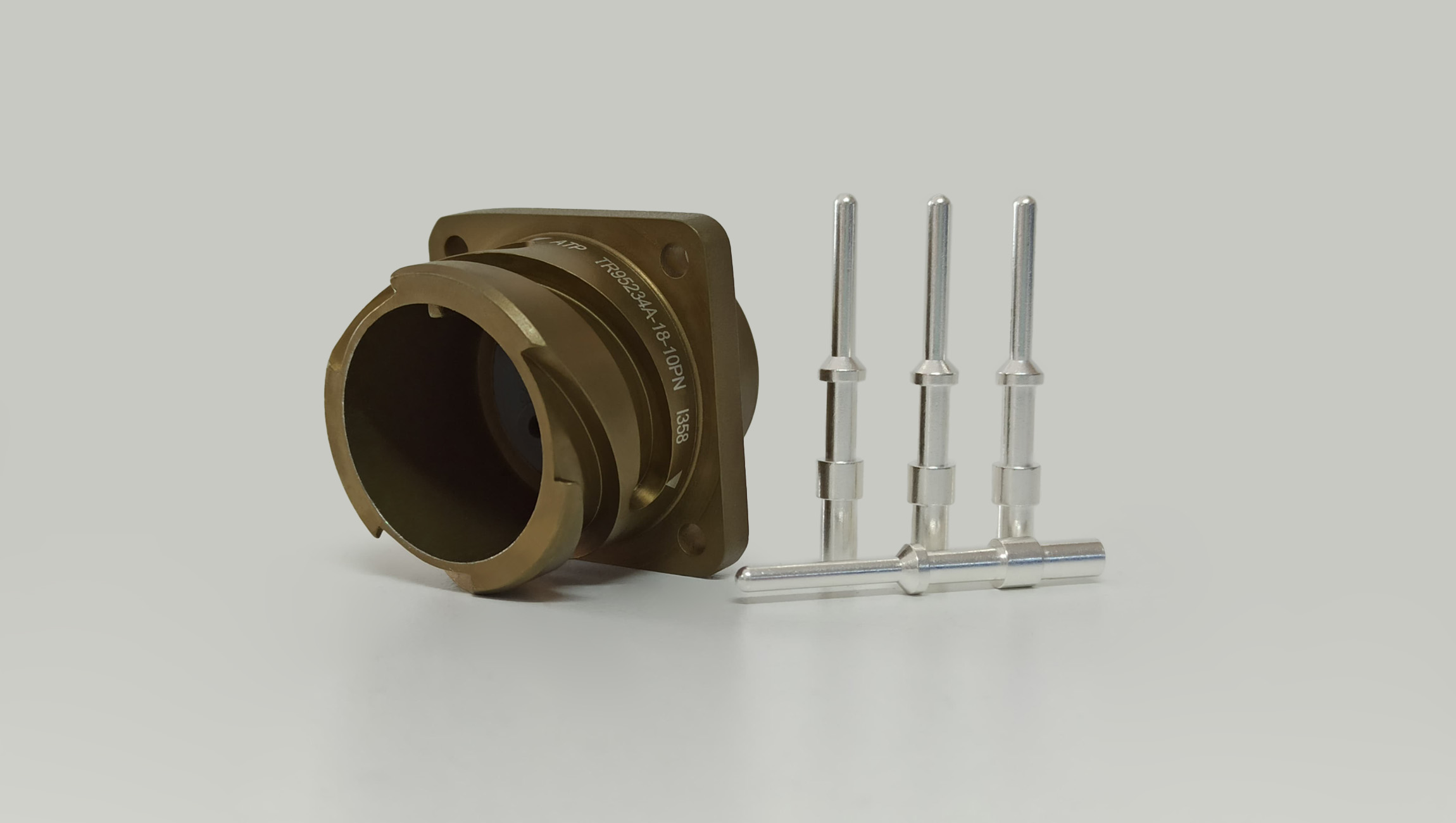

Receptacle for front panel mounting with square flange.
VG95234A-18-10PN
Ürün Özellikleri
| Filtre Adı | Değer |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Box Mounting Receptacle |
| Connector Mounting Type | Front Mount |
| Shell Stytle | A |
| Number of Contacts | 4 |
| Contact Gender | Pin |
| Shell Size | 18 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Kataloglar
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
18-10 |
4 |
25 |
12 |
N (0°) |
|

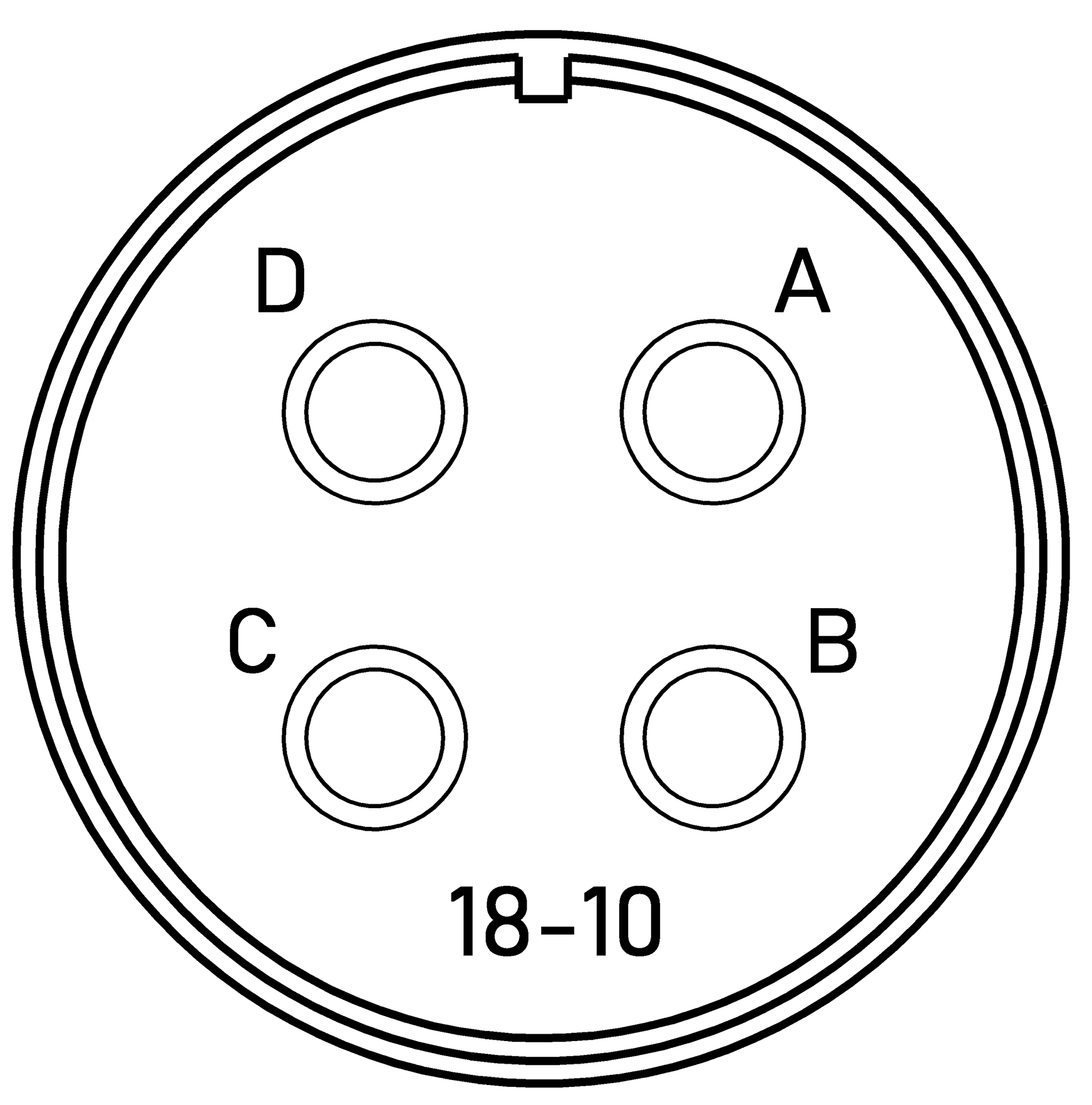

Contact Layout (front face of pin illustrated)
