VG95234B2-20-27SX
CA3102E20-27SXB-F80-05
TR95234B2-20-27SX
Receptacle with square flange for rear panel mounting. Style B2 with 4 entry holes.
VG95234B2-20-27SX
Ürün Özellikleri
| Filtre Adı | Değer |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Box Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Shell Stytle | B1, B2 |
| Number of Contacts | 14 |
| Contact Gender | Socket |
| Shell Size | 20 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Kataloglar
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
20-27 |
14 |
15 |
16 |
X (110°) |
|

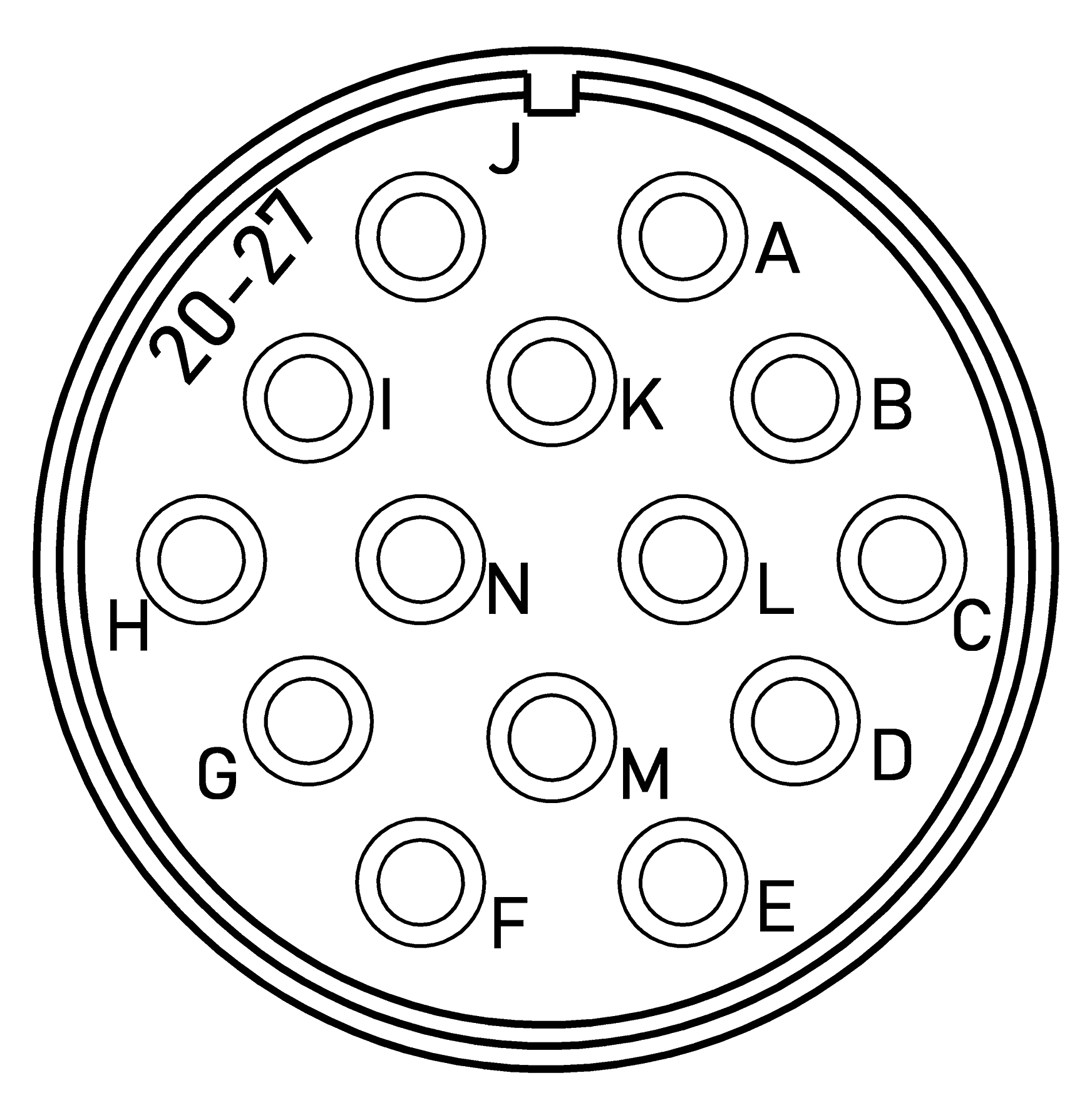

Contact Layout (front face of pin illustrated)
