VG95234J2-28-15PN
CA3100E28-15PB-F80-05
TR3100E28-15PB-F80-05

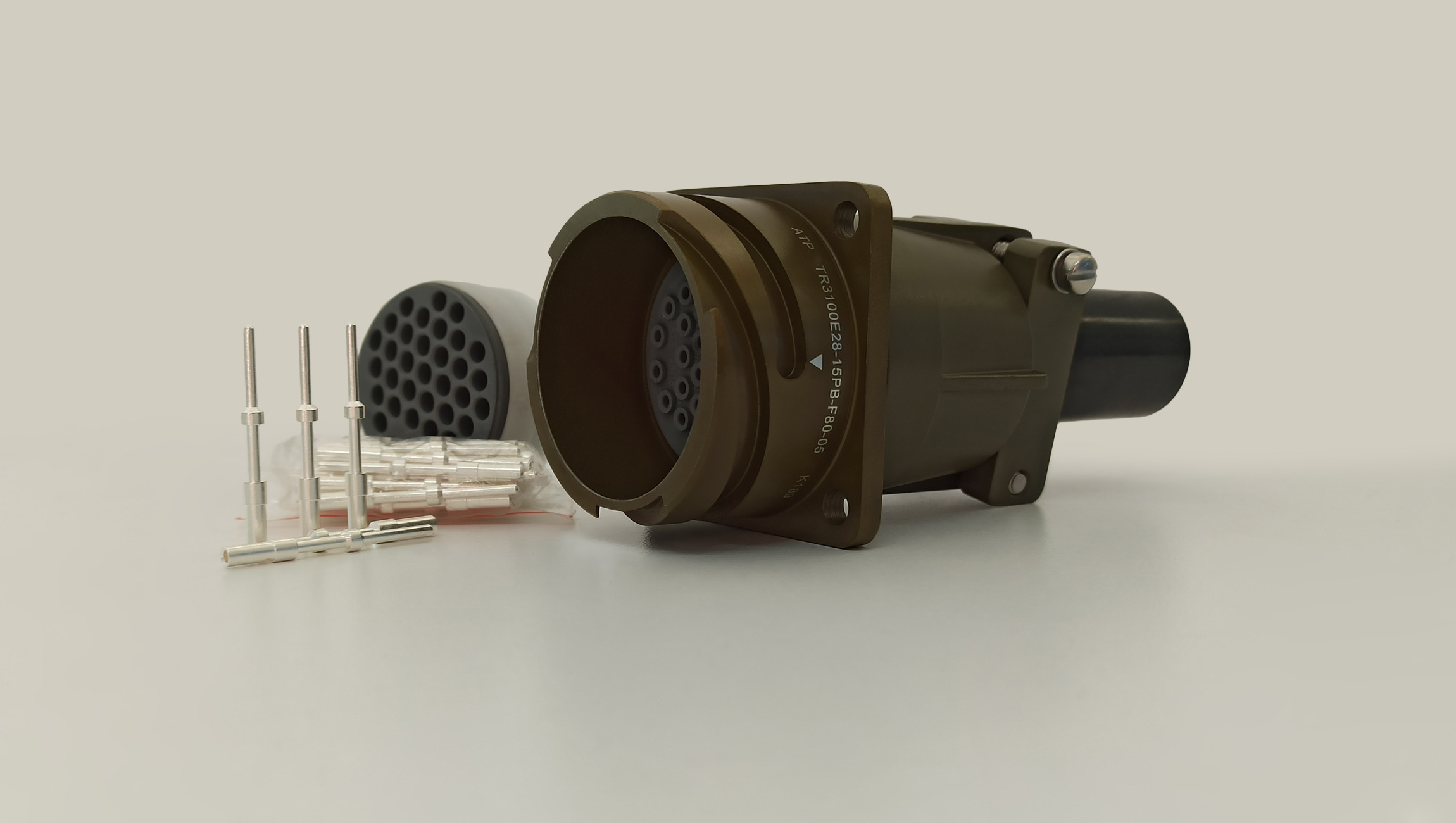

Wall mounting receptacle with cable clamp and telescope bushing. Style J2 with 4 entry holes.
VG95234J2-28-15PN
CA3100E28-15PB-F80-05
( TR3100E28-15PB-F80-05 )
Konnektörler > VG95234 Bayonet Series
VG95234J2-28-15PN
Ürün Özellikleri
| Filtre Adı | Değer |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Wall Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Connector Endbell Type | Cable Clamp |
| Shell Stytle | J1, J2 |
| Number of Contacts | 35 |
| Contact Gender | Pin |
| Shell Size | 28 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Kataloglar
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
28-15 |
35 |
15 |
16 |
N (0°) |
|

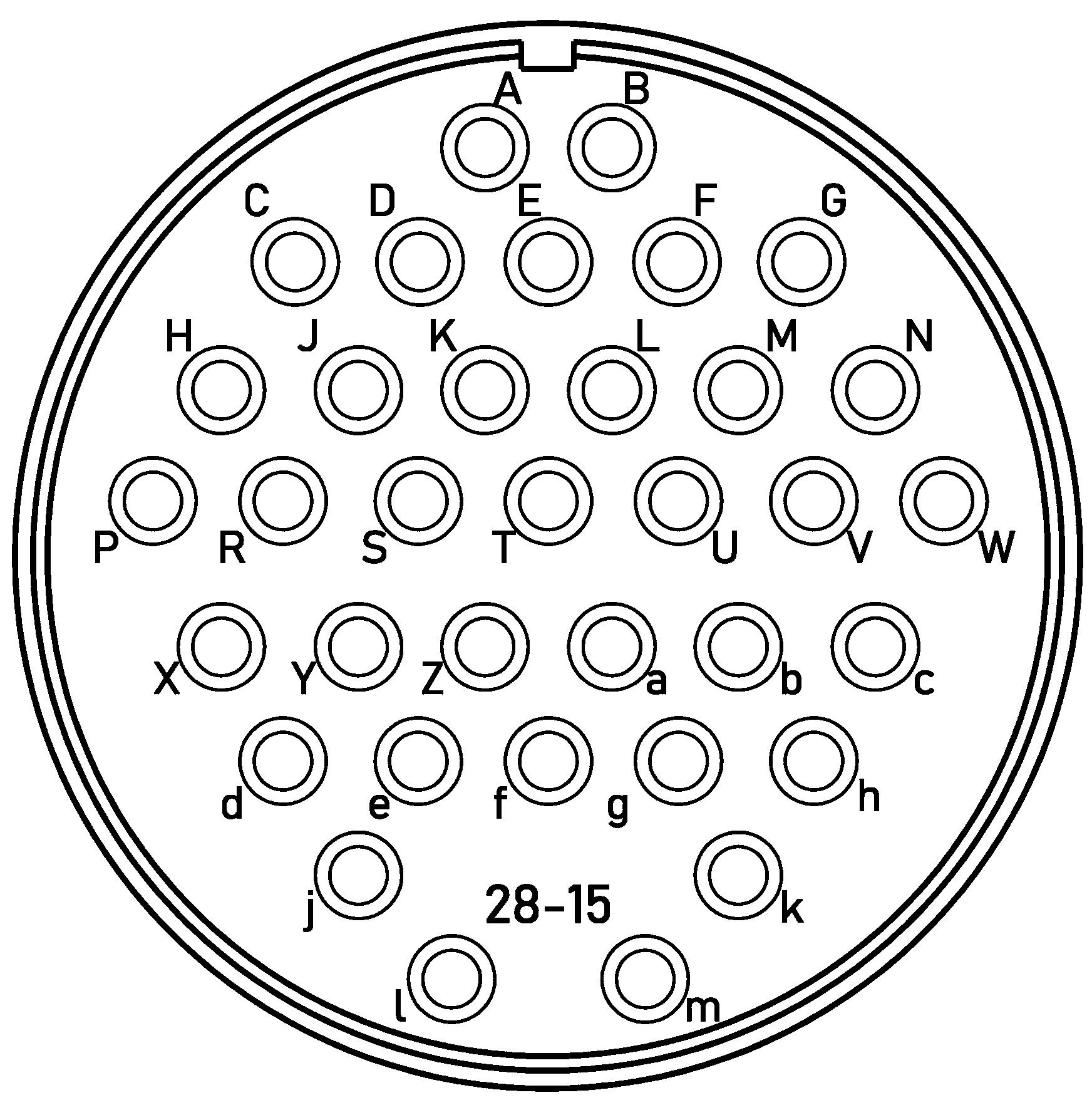

Contact Layout (front face of pin illustrated)
