VG95234G-28A51SN
CA3106E28A51SB-02

( TR3106E28A51SB-02 )

Konnektörler > VG95234 Bayonet Series

VG95234G-28A51SN
CA3106E28A51SB-02

TR3106E28A51SB-02

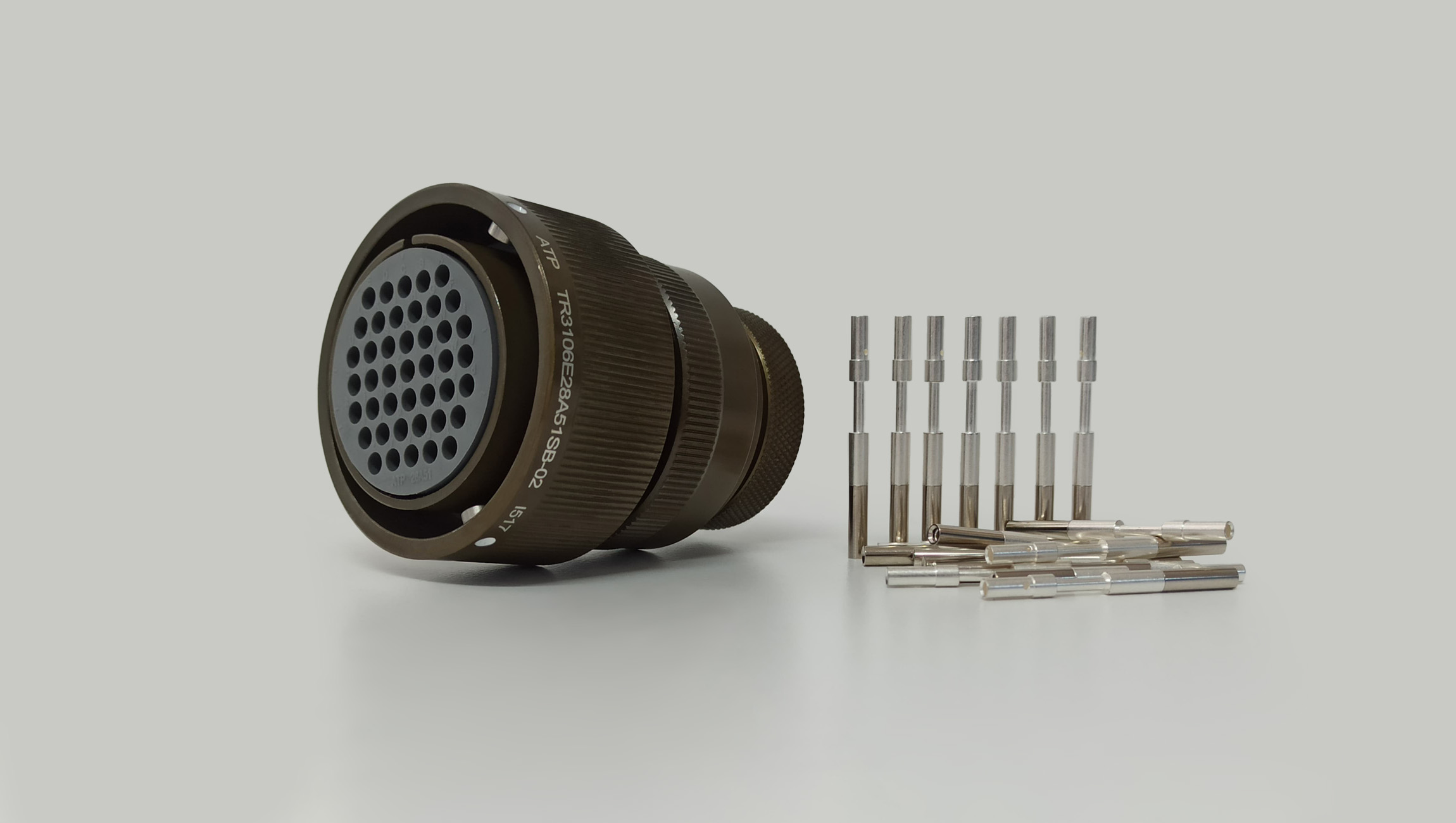

Straight plug with adapter for heat shrink boots.

Ürün Özellikleri

Filtre Adı Değer
Connector Type Plug
Connector Shell Style Straight Plug
Connector Endbell Type Heat Shrink Boot
Shell Stytle G
Number of Contacts 43
Contact Gender Socket
Shell Size 28
Shell Material Aluminium
Shell Plating Cadmium Olive Drab Over Electroless Nickel
RoHS N

Contact Info

Contact
arrangement

Contacts

Angular position of the contact inserts in degrees

Number

Size

Metric

AWG

28A51

43

15

16

N (0°)

Contact Layout (front face of pin illustrated)
