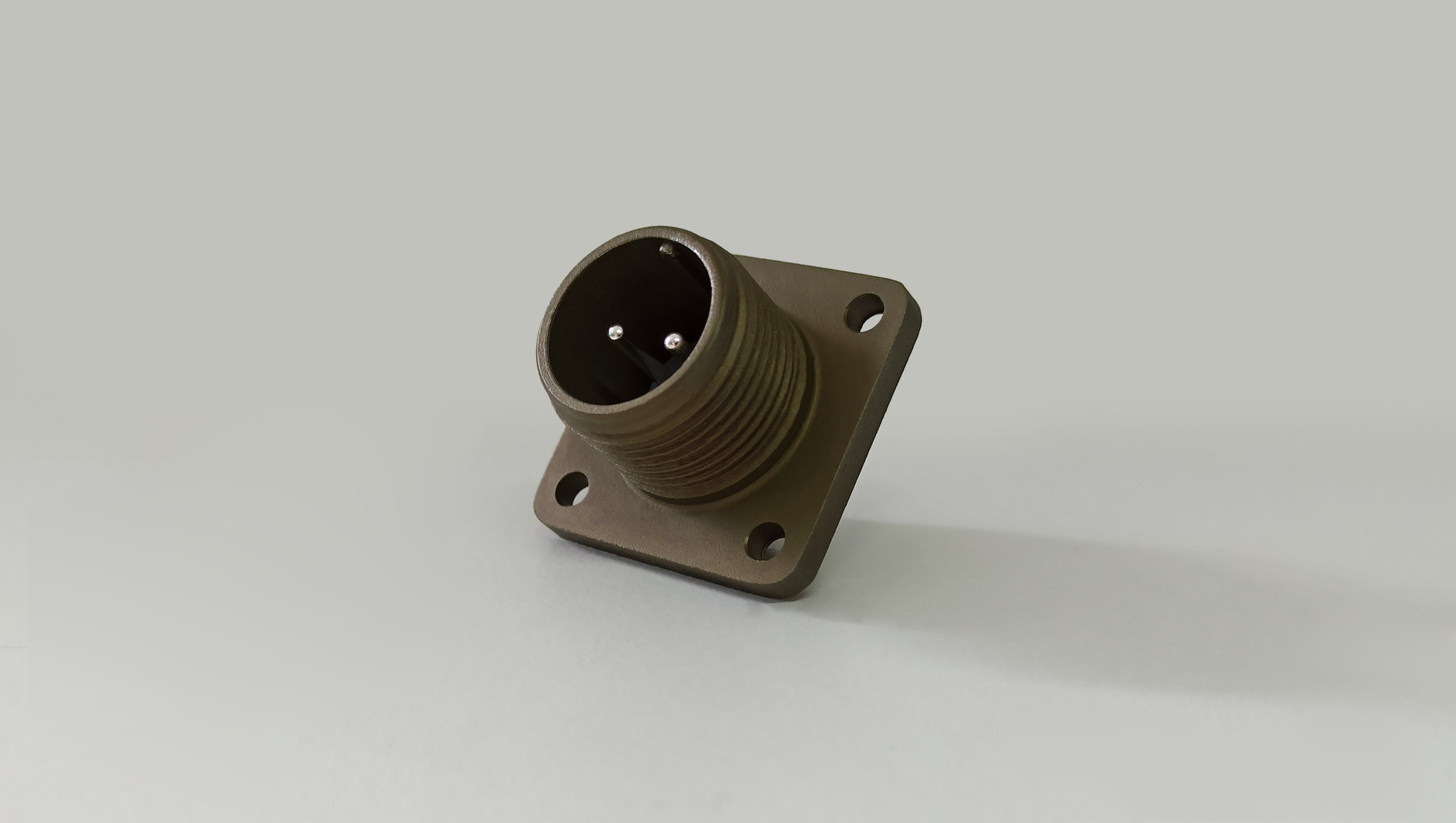

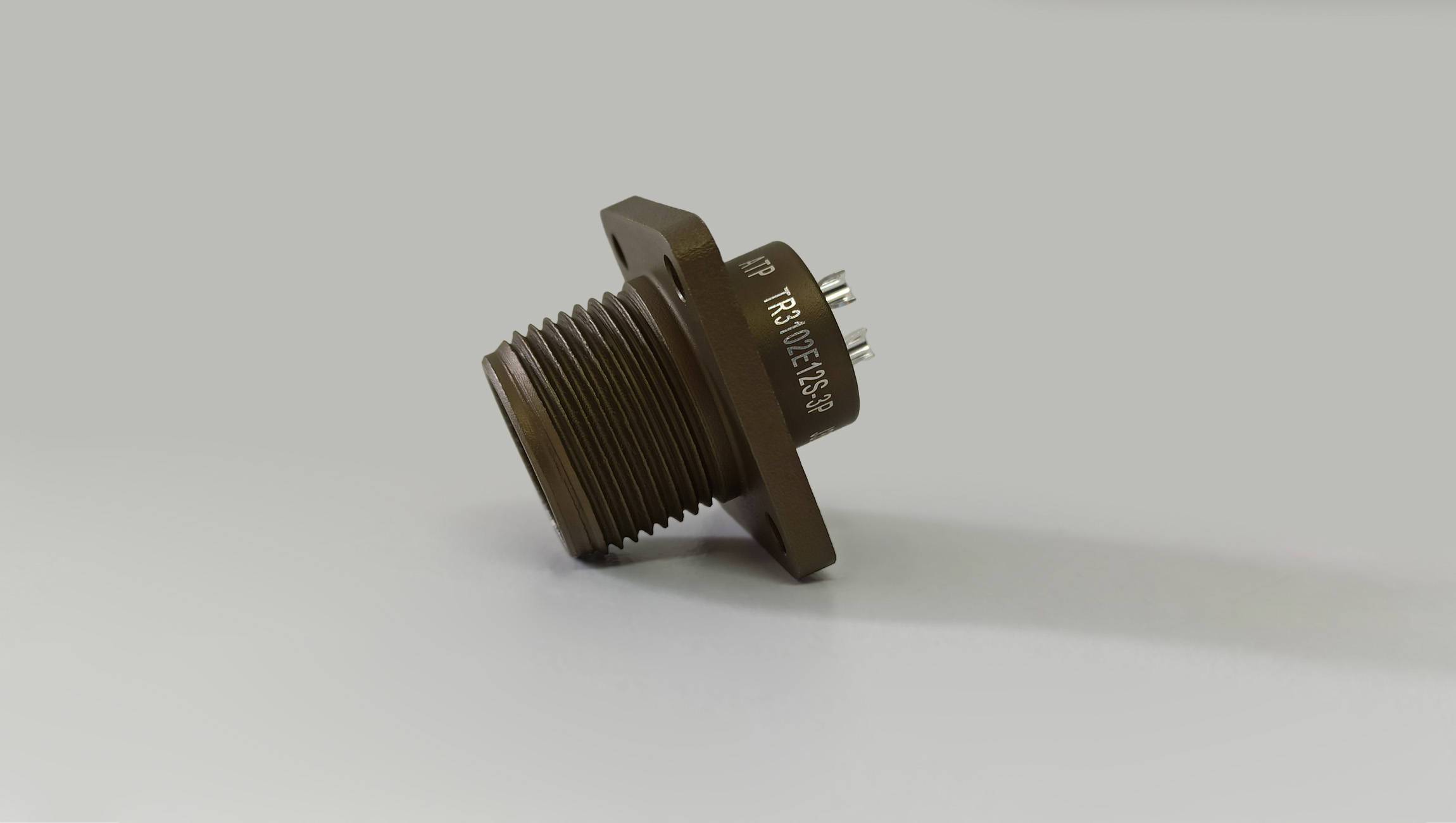

MS3102E12S-3P
Ürün Özellikleri
| Filtre Adı | Değer |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Box Mounting Receptacle |
| Connector Mounting Type | Front Mount |
| Number of Contacts | 2 |
| Contact Gender | Pin |
| Shell Size | 12S |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Contact Info
|
Front face of pin illustrated |
Contact |
Contacts |
Angular position of the contact inserts in degrees |
||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
|
12S-3 |
2 |
15S |
16S |
N (0°) |
