VG95234A-20-11SN
CA3102E20-11SB-F80
TR3102E20-11SB-F80

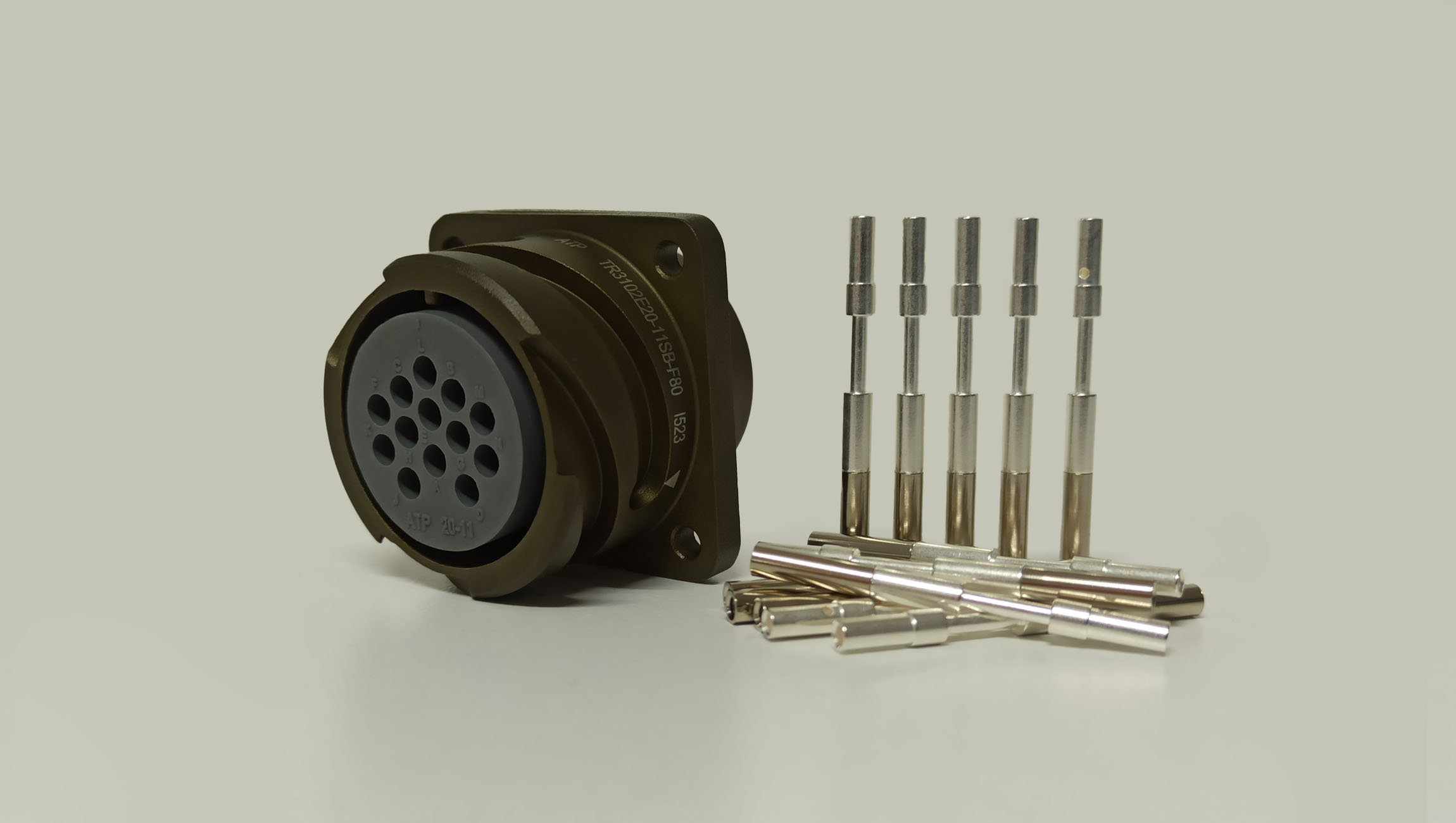

Receptacle for front panel mounting with square flange.
VG95234A-20-11SN
Ürün Özellikleri
| Filtre Adı | Değer |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Box Mounting Receptacle |
| Connector Mounting Type | Front Mount |
| Shell Stytle | A |
| Number of Contacts | 13 |
| Contact Gender | Socket |
| Shell Size | 20 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Kataloglar
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
20-11 |
13 |
15 |
16 |
N (0°) |
|

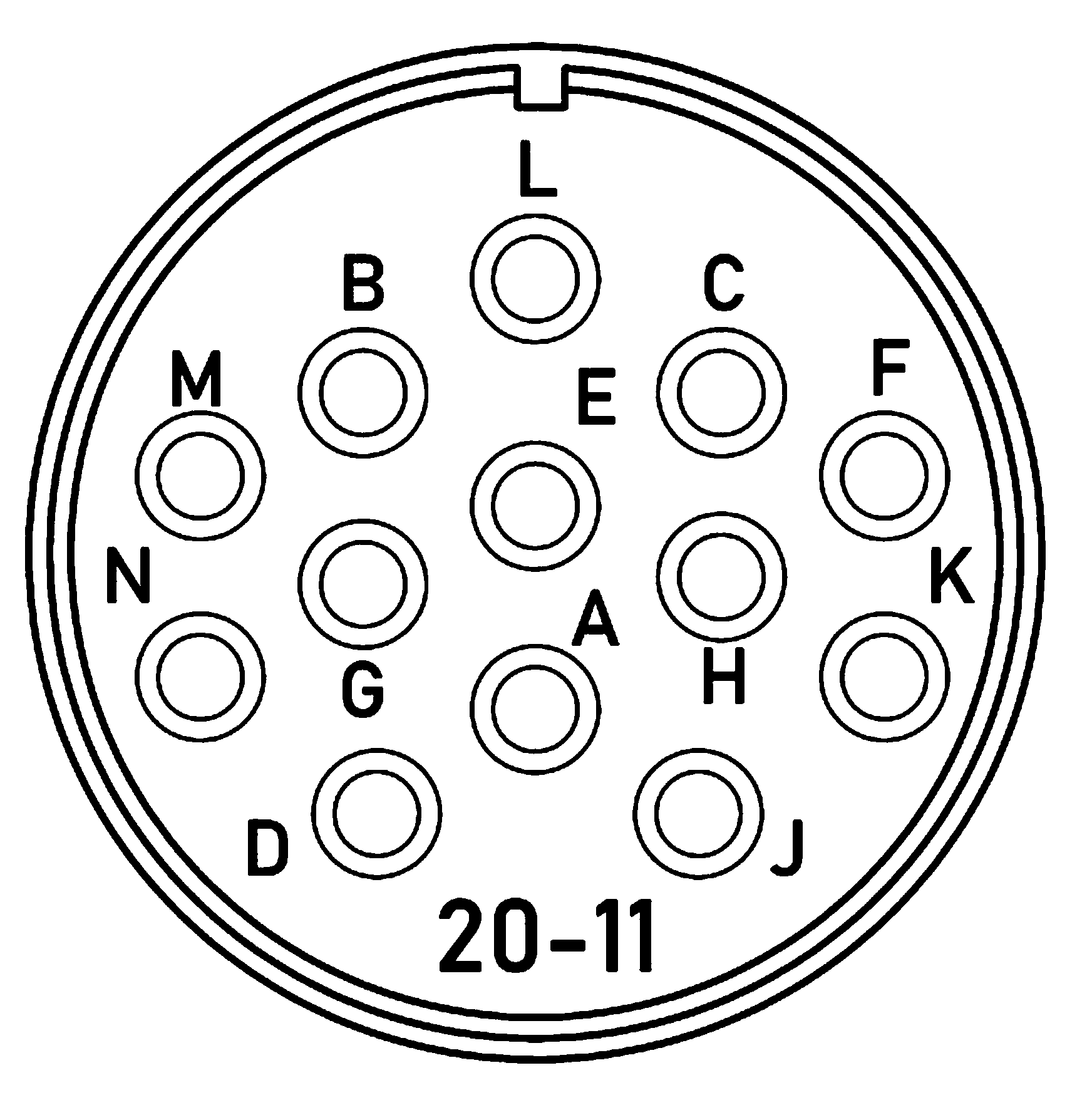

Contact Layout (front face of pin illustrated)
