VG95234A-20-22PW
CA3102E20-22PWB-F80
TR95234A-20-22PW

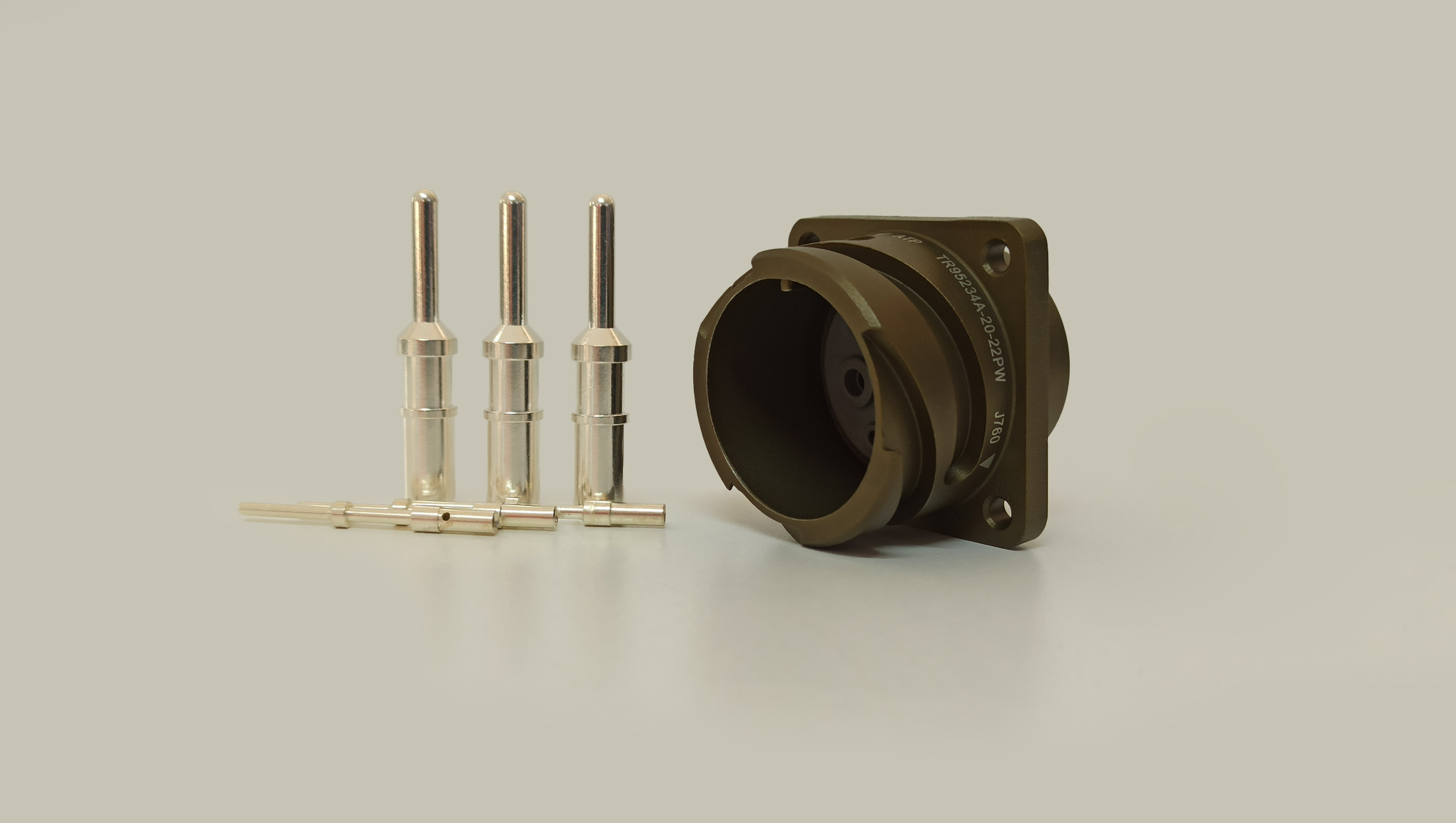

Receptacle for front panel mounting with square flange.
VG95234A-20-22PW
Ürün Özellikleri
| Filtre Adı | Değer |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Box Mounting Receptacle |
| Connector Mounting Type | Front Mount |
| Shell Stytle | A |
| Number of Contacts | 6 |
| Contact Gender | Pin |
| Shell Size | 20 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Kataloglar
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
||
|
Number |
Size |
|||
|
Metric |
AWG |
|||
|
20-22 |
3 |
100 |
8 |
W (80°) |
|
3 |
15 |
16 |
||

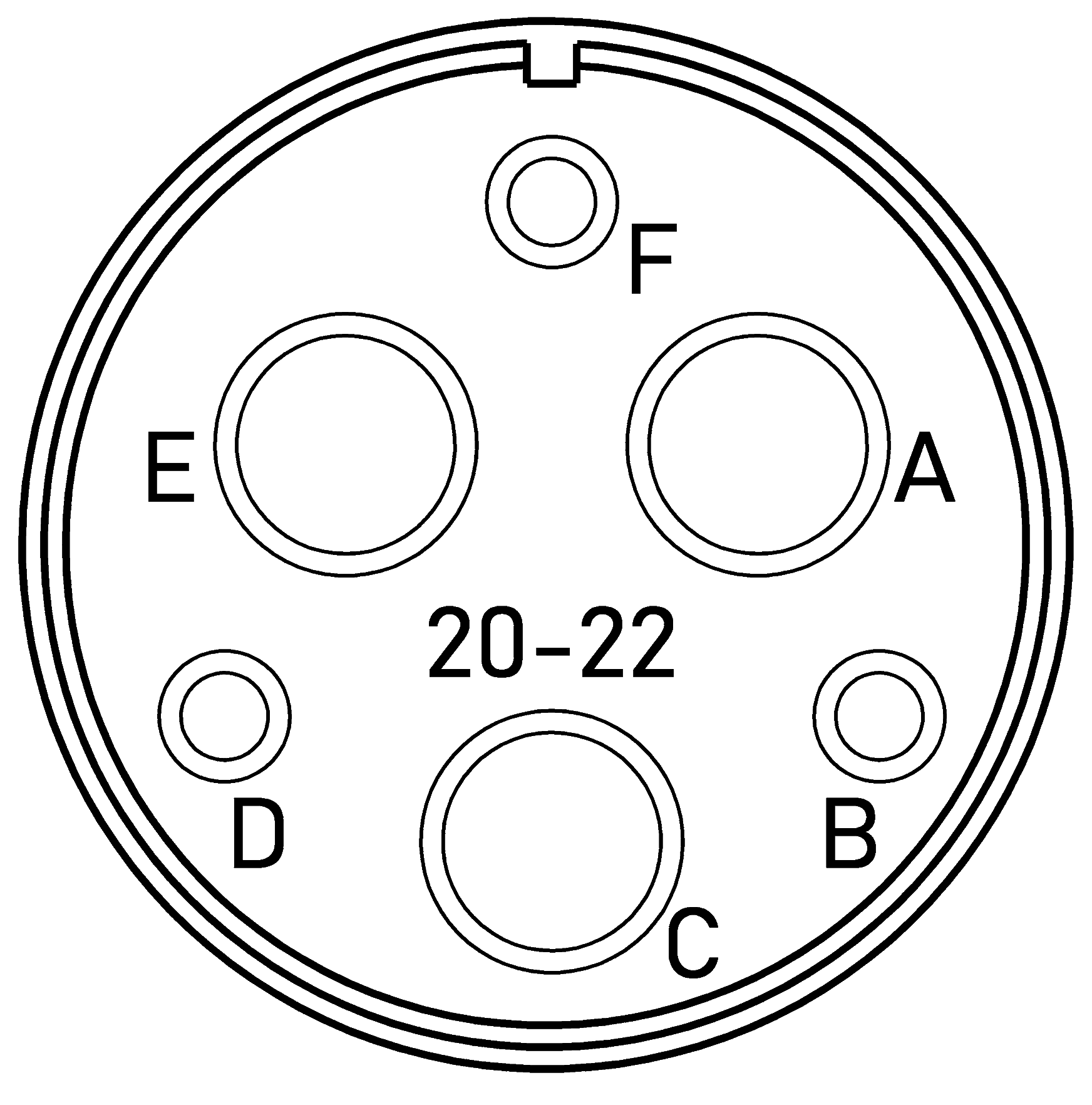

Contact Layout (front face of pin illustrated)
