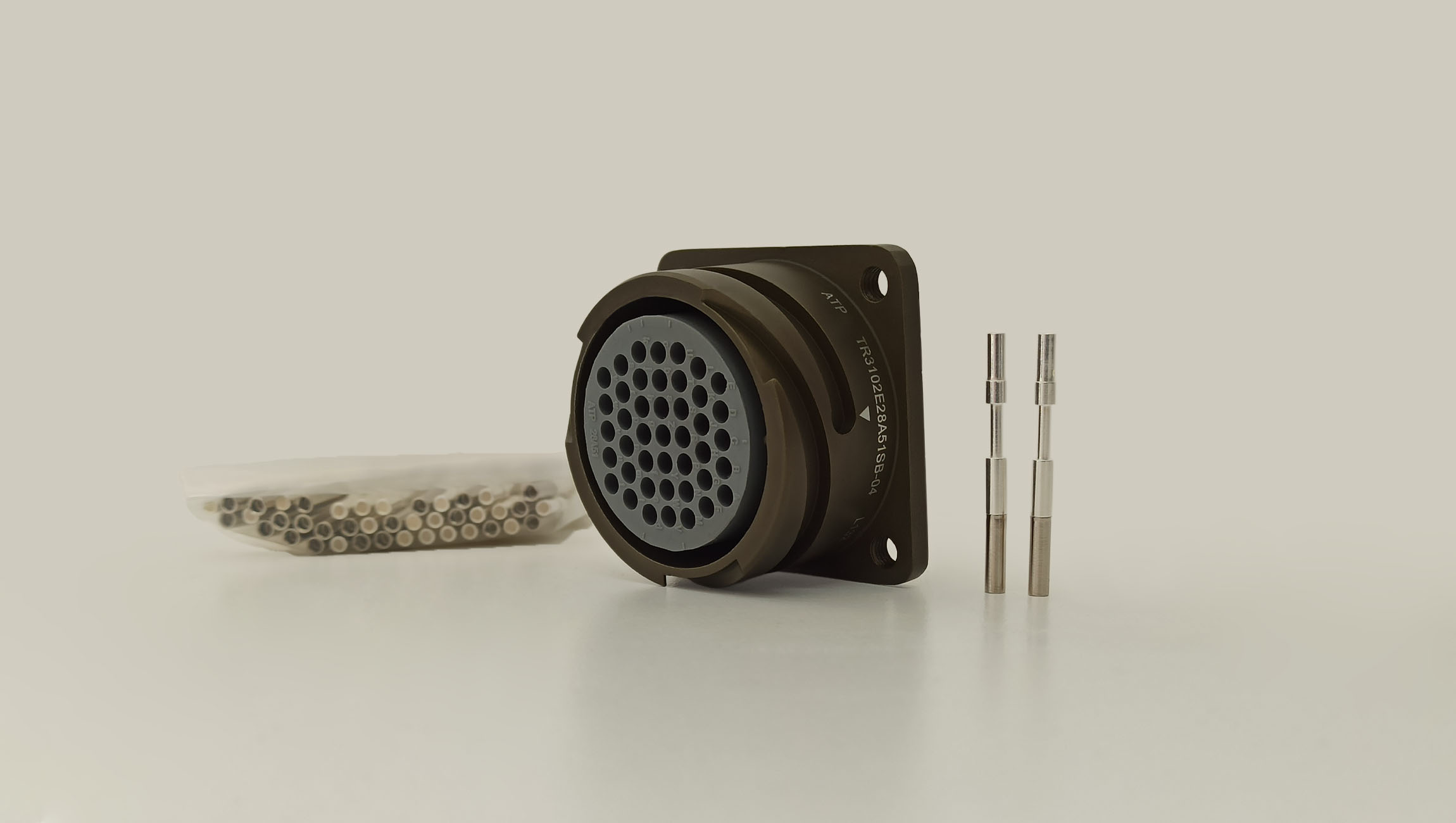

VG95234B1-28A51SN
CA3102E28A51SB-04
TR3102E28A51SB-04
Receptacle with square flange for rear panel mounting. Style B1 with 4 threaded holes.
VG95234B1-28A51SN
Ürün Özellikleri
| Filtre Adı | Değer |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Box Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Shell Stytle | B1, B2 |
| Number of Contacts | 43 |
| Contact Gender | Socket |
| Shell Size | 28 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Kataloglar
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
28A51 |
43 |
15 |
16 |
N (0°) |
|
Contact Layout (front face of pin illustrated)
