VG95234N1-16-11PN
CA3100E16-11PB-15
TR3100E16-11PB-15

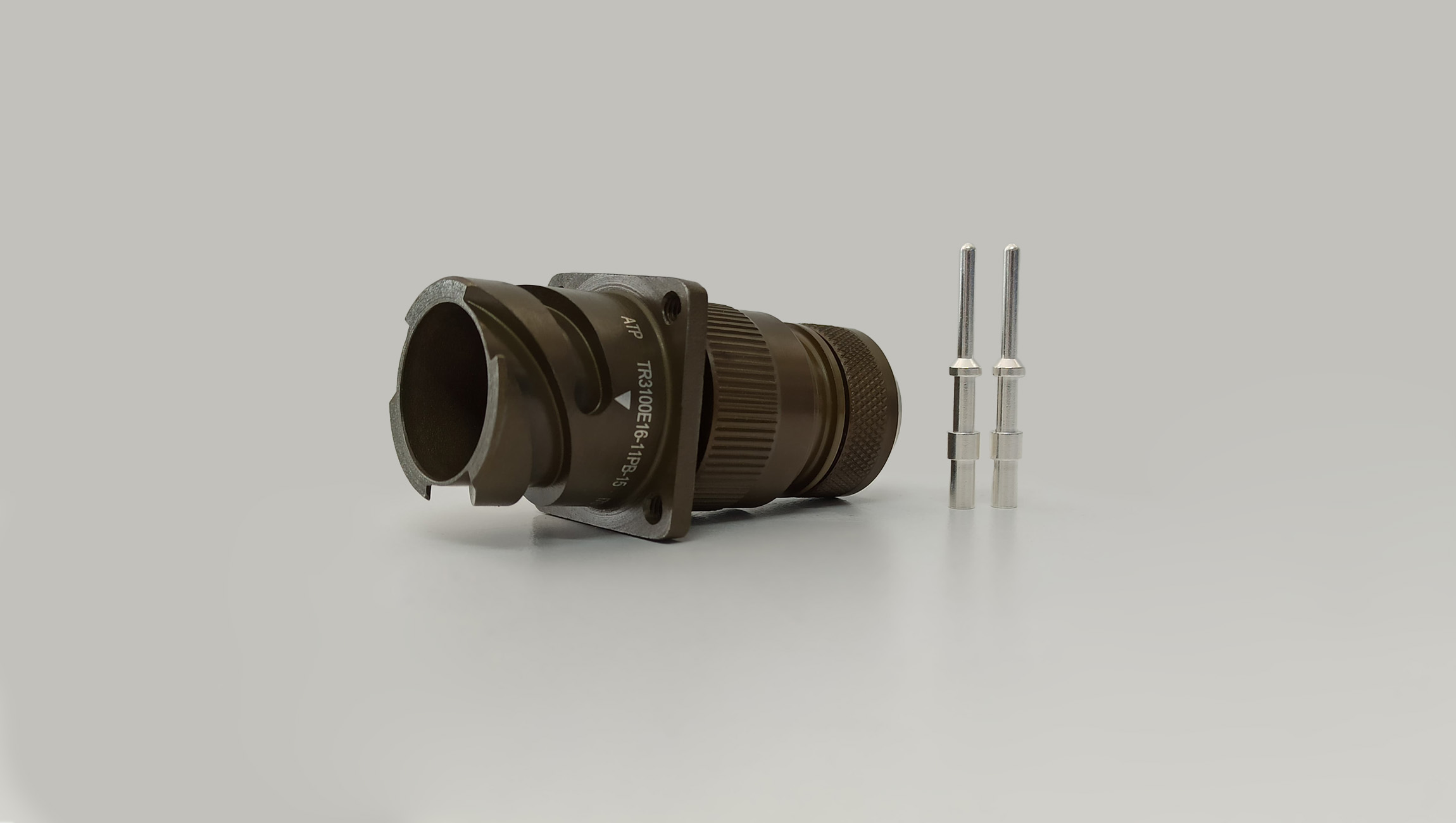

Shielded receptacle with endbell for shielding braid, and heat shrink boots. Style N1 with 4 threaded holes.
VG95234N1-16-11PN
Ürün Özellikleri
| Filtre Adı | Değer |
|---|---|
| Connector Type | Receptacle |
| Connector Shell Style | Wall Mounting Receptacle |
| Connector Mounting Type | Rear Mount |
| Connector Endbell Type | Shielded |
| Shell Stytle | N1, N2 |
| Number of Contacts | 2 |
| Contact Gender | Pin |
| Shell Size | 16 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium Olive Drab Over Electroless Nickel |
| RoHS | N |
Kataloglar
Contact Info
|
Contact |
Contacts |
Angular position of the contact inserts in degrees |
|||
|
Number |
Size |
||||
|
Metric |
AWG |
||||
|
16-11 |
2 |
25 |
12 |
N (0°) |
|

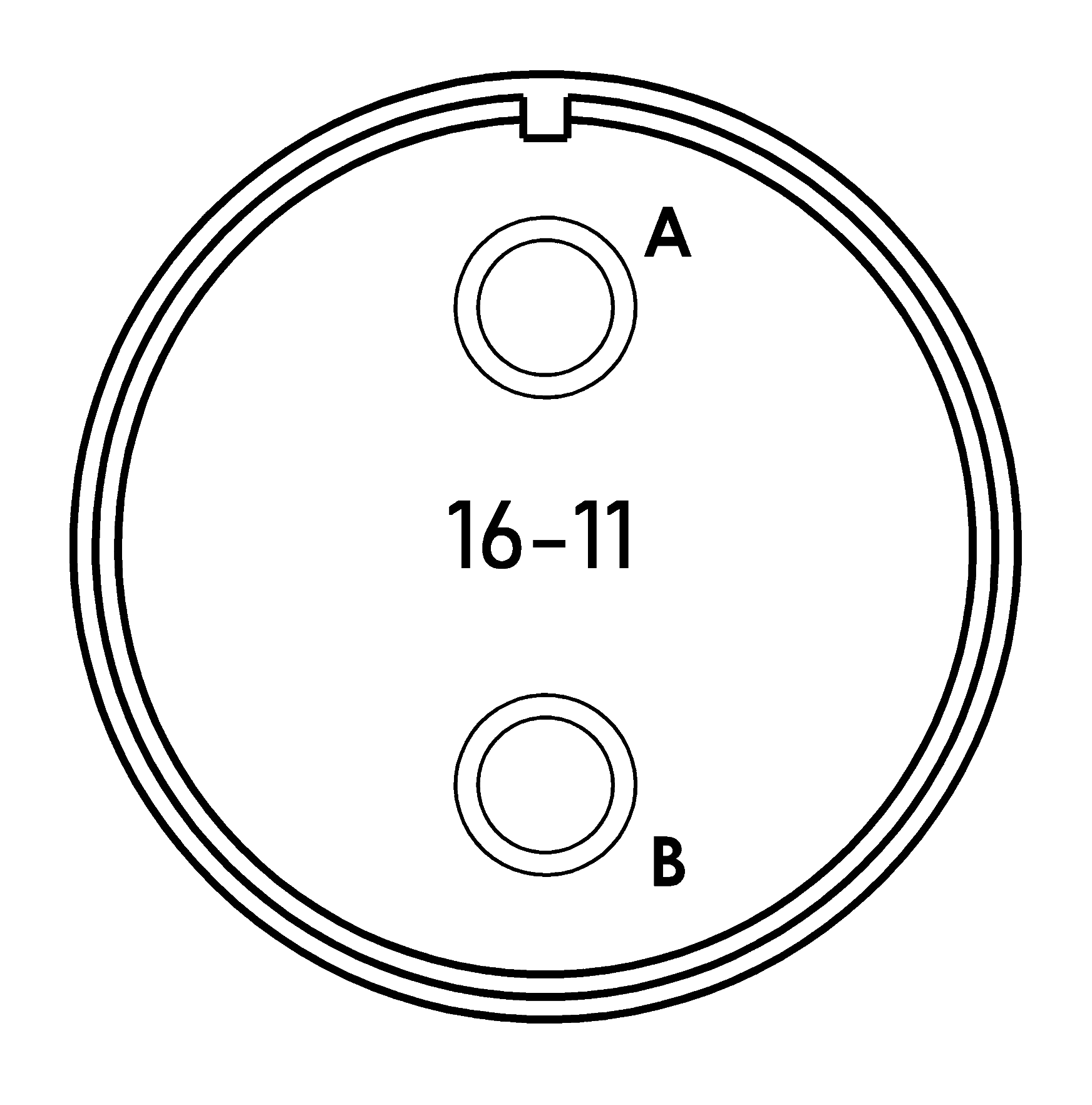

Contact Layout (front face of pin illustrated)
